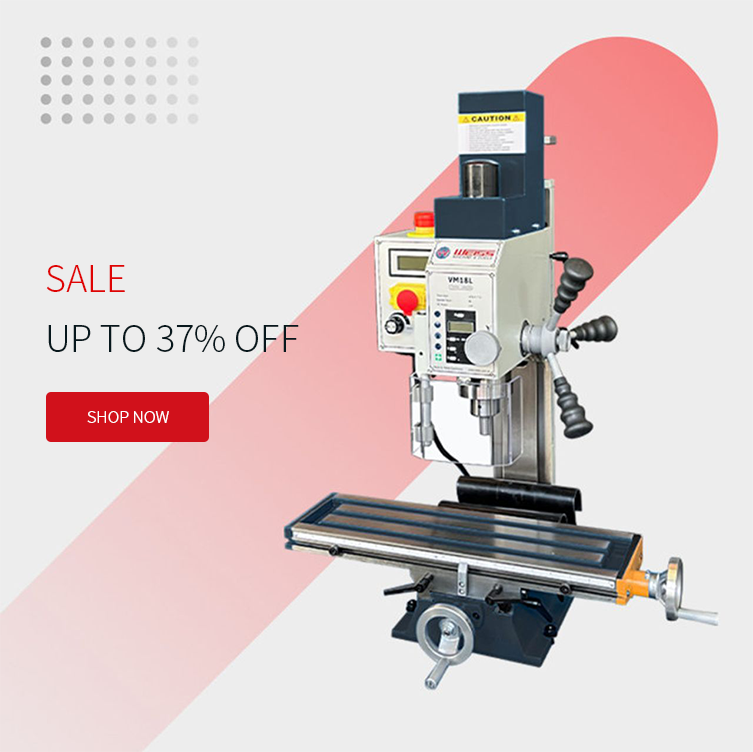

WEISS™ VM18L 5.5"x20" Benchtop Milling Machine

$1290.96
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: WEISS™ VM18L 5.5"x20"

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

20cm*21.25cm*33cm

Single gross weight

197kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

MODEL NO.: VM18L
INTRODUCTION:

WEISS 3rd generation small compact mill with largest table, tabel travel and motor power in its class, can take on a huge range of workpiece sizes

Standard Accessories

These accessories comes with each machine for no extra charge, including:

1- Drill chuck with key capacity 5/8" with JT33 taper
2- Drill chuck arbor R8/JT33
3- 7/16"-20 Drawbar
4- 3-Axis magenetic scale DRO[optional]
5- Toobox & tools
6- Technical documentation

SPECIFICATION

Model Number	VM18L	VM18L-D
Item Number	10203185	10203185-D
Max. Drilling Capacity	5/8"
Max. End Milling Capacity	5/8"
Max. Face Milling Capacity	2"
Spindle Stroke	2"
Rang of Spindle Speeds	Variable 100-2250 rpm
Taper of Spindle	R8
Drawbar	7/16"-20
Max. Distance Spindle to Table	10-7/8"
Max. Distance Spindle to Column	6-5/8"
T-Slot Size	3-3/8"
T-Slot Centers	1-5/8"
Table Size	19.75" x 5.5"
Cross Travel (Y-Axis)	5.5"
Longitudinal Travel (X-Axis)	13"
Vertical Travel (Z-Axis)	10-7/8"
Table Leadscrew Pitch	10 TPI (100" Per Turn)
Headstock Tilt Lef&Right	±90°
Motor Power (Brushless type)	1 HP
Power requirement	Single Phase / 110V / 60Hz
Packing Size	20" x 21.25"x33"
Net Weight	155 lbs	163 lbs
Gross Weight	197 lbs	205 lbs
Standard Accessories	1- Keyless drill chuck capacity 5/8" with JT33 taper 2- Drill chuck arbor R8/JT33 3- 7/16"-20 Drawbar 4- Toobox & tools 5- Technical documentation	1- Drill chuck with key capacity 5/8" with JT33 taper 2- Drill chuck arbor R8/JT33 3- 7/16"-20 Drawbar 4- 3-Axis magenetic scale DRO 5- Toobox & tools 6- Technical documentation

DESCRIPTION

1. WEISS 3rd generation small compact mill with largest table, tabel travel and motor power in its class, can take on a huge range of workpiece sizes

2. Big powerful 1 HP (750W) Brushless DC Variable Speed Motor

3. Single speed GATES tooth belt driving system with 100-2250 RPM speed, provides easy and reliable operation, super silence runnning

4. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis

5. All leadscrews are true inch pitch screws, larger dials with .002" graduate for easier reading

DETAILS
