VM28 VM28L-Ball Screw Type Milling Machines

 

VM28 VM28L-Ball Screw Type Milling Machines

$1192.16
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: VM28

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

75cm*58cm*94cm

Single gross weight

105kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

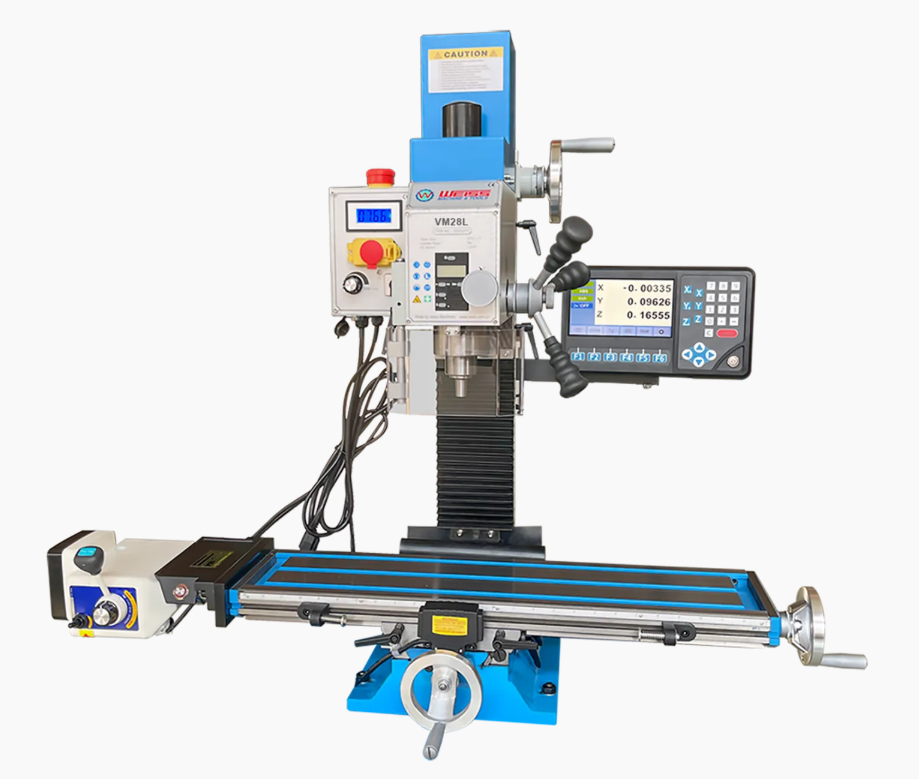

MODEL NO.: VM25L VM28L Variable Speed Milling Machine
INTRODUCTION:

Medium capacity, small footprint machine with MT3 spindle nose,allowing the use of widely used attachments.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

*Drill chuck 3-16mm
*Arbor MT2/B16-M10
*Drawbar
*Digital display of speed range
*Digital spindle stroke indication
*Protect cover for spindle
*Tool box & tools

DESCRIPTION

FEATURES:

1.Medium capacity, small footprint machine with MT3 spindle nose,allowing the use of widely used attachments.

2. 1100W powerful brushless motor with high-torque and low-noise, easy maintenance

3. Single speed tooth belt drive provide convenient and reliable operation with quiet running

4. Spindle is supported by high precision taper roller bearing

5. Variable-speed spindle from 100 to 2,250 rpm with DRO

6. Micrometer fine feed or standard drilling function

7. Massive cross table with T-slots

8. The dovetail rails are equipped with adjustable taper inserts for greater wear resistance

9. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis

10. Mill head tiltable to both sides by ± 90 ° for angular boring, milling of bevels etc.

11. VM28(L) is ball-screw type based on VM25(L), with X & Y axis ball screw and Z axis common screw

12. VM28(L) Z axis ball screw is available for CNC conversion.

13. Manual central lubrication is available for VM28(L) (optional)

ball milling machine

SPECIFICATION

Model No.	VM28/VM28L
Item No.	10203280/10203285
Specifications：	Metric(mm)	Imperial (in)
Max. drilling capacity	25 mm	25 mm
Max. end milling capacity	16 mm	16 mm
Max. face milling capacity	63 mm	63 mm
Table size	500x180 mm	700x180 mm
Table travel (X,Y)	285x140 mm	480x140 mm
T-slot	3x12 mm	3x12 mm
X-Axis leadscrew	Ball screw	Ball screw
Y-Axis leadscrew	Ball screw	Ball screw
Z-Axis leadscrew	T screw	T screw
Spindle taper	MT3/R8	MT3/R8
Spindle stroke	50 mm	50 mm
Step of spindle speeds	Variable	Variable
Range of spindle speeds	100-2250 rpm	100-2250 rpm
Spindle incline angle	±90°	±90°
Distance from spindle to column	160 mm	160 mm
Distance from spindle nose to table	320 mm	320 mm
Brushless Motor	1.1 KW	1.1 KW
Machine Size	750x580x940 mm	950x580x940 mm
Packing size	560x600x900 mm	760x710x950 mm
Net weight	105kg	118kg

DETAILS

STANDARD ACCESSORIES

Drill chuck 3-16mm

Arbor MT2/B16-M10

Drawbar

Digital display of speed range

Digital spindle stroke indication

Protect cover for spindle

Tool box & tools

Opitional Accessories	Item No.
Tapping foot pedal	30200024
X-Axis power feed	30202041
Z-Axis elevator motor	30202047
Keyless drill chuck 3-16mm	22020205
HHS 25PCS drill sets 1-13mm	21210252
7 PCS HSS Tin-coated end mill set, 4-16mm	21100007
12 PCS HSS Tin-coated end mill set, 3-12mm	21100012
5 pcs Center drill set	21200005
58pcs clamping kits M 10 x 1.5/11.7mm	22038022
Mill chuck set ER32 MT3 3-20mm 12pcs	22030233
Machine vise BMS100	22101024
Machine vise WHV140	22101045
2 way precision tilting vise WOA100	22102104
Universal machine vise MVB100	22102024
Rotary table RT100	22111510
Semi-universal dividing head BS-0	22113005
3-Axis DRO with magnetic sales D80	23073302
Oil tray	30202010
Stand	30202030
Luxury stand	30202035
Z-Axis ball screw (for CNC conversion)	30212206B/30212206LB
Manual central luburication (only VM28/VM28L)	30202019
