Introduction

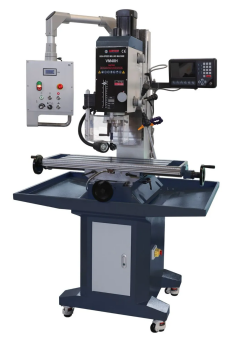

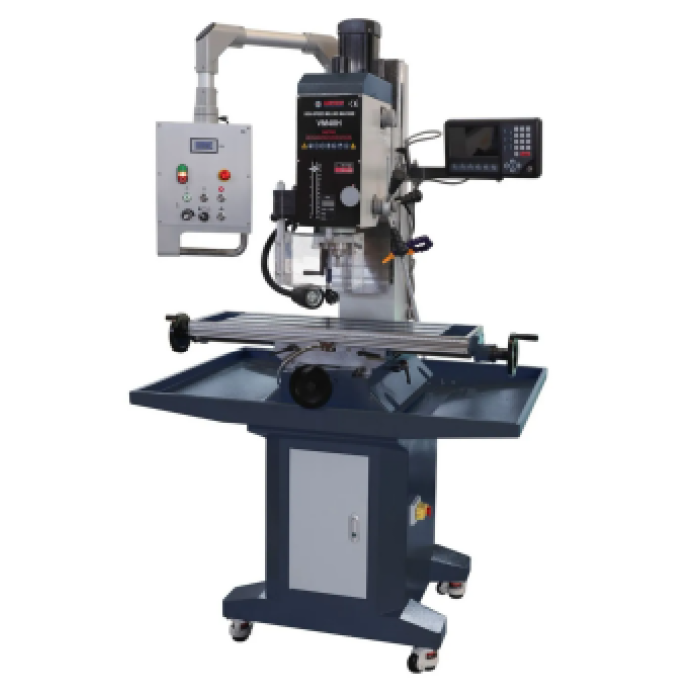

MODEL NO.: VM48H
INTRODUCTION:
WEISS VM48H has heavy, stable and solid column, made ofhigh-qualitygray cast iron, with ground and scraped dovetail guide,for high stability and precision.
Standard Accessories
These accessories comes with each machine for no extra charge, including:
Drawbar M12
Drill chuck 1-16mm
Morse taper drill sleeve MT3/2
Digital display of speed range
Digital spindle stroke indication
Protect cover for spindle
Luxury electric control box
LED working light
Coolant system
Tools&Toolbox
SPECIFICATION
| CONTENT | METRIC INFO. | IMPETRIAL INFO. |
| Item No. | 10203348 |
| Max. drilling capacity | Φ45 mm | Φ1.77" |
| Max. end milling capacity | Φ32 mm | Φ1.26" |
| Max. face miling capacity | Φ80 mm | Φ3.15" |
| Table size | 800x240 mm | 31.5" x9.45" |
| Cross travel | 220 mm | 8.66" |
| Longitudinal travel | 460 mm | 18.11" |
| Vertical travel | 330mm | 13" |
| Taper of spindle bore | MT4 or R8 or ISO30 | MT4 or R8 or ISO30 |
| Spindle stroke | 128 mm | 5" |
| T-slot | 3x14mm | 0.12" x 0.55" |
| Step ofspindle speeds | Variable | Variable |
| Range of spindle speeds | 50-4500 rpm | 50-4500 rpm |
| Heads tilt left & right | ±90° | ±90° |
| Distance from spindle to column | 270 mm | 10.63" |
| Distance from spindle nose to table | 415 mm | 16.34" |
| Motor | 2200 W | 2.95 HP |
| Dimensions | 1135x890x1900 mm | 44.69" x35.04" x74.8" |
| Packing size: | 1280x1000x2080 mm | 50.39" x39.37" x81.89" |
| Net Weight: | 375kg | 827.32 lbs |
DESCRIPTION
- Heavy, stable and solid column, made ofhigh-qualitygray cast iron, with ground and scraped dovetail guide,for high stability and precision.
- Two steps belt drive mill with patent quick change knob,completely change the old complex and hassle belt drivespeed change way, much easy and convenient.
- 2.2kw powerful brushless motor enable the mill!up to 4500rpm speed.
- Massive and large-dimensioned XY stage, preciselysurface-finished with T-slots
- Dovetail guiding for X, Y&Z axis, ajustable by gibsDigital speed and spindle stroke (metric&imperial mode) indicator
- Mill head tiltable to both sides for angular boring!milling of bevels etc.
- Coolant system
- LED light
- Lifting motor ensures covenient height adjustmentof milling head(optional)
- Manual central lubrication for all guide ways (optional)
- Super heavy-duty stand with multi-function wheel, can beadjust height and fix as machine pad(Optional)
DETAILS
 | Optional Accessories |
| Power feed for X-axis | 30314041 |
| Power feed for Y-axis | 30314042 |
| Elevator motor for Z-axis | 30314047 |
| Manual central lubirciation | 30314019 |
| Mill chuck set ER32 MT4 3-25mm 15pc | 22030254 |
| Horizontal&Vertical totary table HV8-200mm | 22111520 |
| Semi-universal dividing head BS-0 | 22113005 |
| Deluxe clamping kit sets 58pcs 14mm, M12 | 22038024 |
| 2 way precision tilting vise WOA100 | 22102104 |
| Universal machine vise MVB100 | 22102024 |
| Machine vise BMS 150 | 22101026 |
| Machine vise WHV140 | 22101045 |
| 20 pcs Hss Tin-coated end mill set, 3-20mm | 21100020 |
| Luxury heavy duty stand with multi-function wheel | 30314038 |
| 3-Axis DRO with magnetic sales D80 | 23073305 |
| 3-Axis DRO with grating scales SINO | 23080305 |
