WEISS™ MPV290F-Movable Mill Head Lathe&Mill&Drill Combination Machine

 

WEISS™ MPV290F-Movable Mill Head Lathe&Mill&Drill Combination Machine

$4463.73
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: WEISS™ MPV290F-Movable Mill Head Lathe&Mill&Drill Combination Machine

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

150cm*78cm*107cm

Single gross weight

280kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

MODEL NO.: MPV290F
INTRODUCTION:

WEISS MPV290F Lathe/Mill combination unit is great updated version compare to WElSS WBP290F with movable miling head allows more complicate working.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

（1）D1-4 camlock 3-jaw chuck with index ring 160mm
（2）MT3 dead center & MT3/MT5 center sleeve
（3）MT3 live center
（4）Drill chuck 1-16mm
（5）Drill chuck arbor
（6）Drawbar
（7）Digital display of speed range
（8）Digital spindle stroke indication
（9）Protect cover for spindle
（10）Tool box & Tools

SPECIFICATION

Model No.:	MPV290F
Item No.:	10110718
Lathe		Mill & Drill
Distance between centers	750 mm	Spindle bore	MT3
Swing over bed	290 mm	Spindle stroke	50 mm
Swing over cross slide	170 mm	Spindle speed	50-225ORPM
Width of bed	180 mm	Mill head travel(X axis)	500 mm
Taper of spindle bore	MT5	Max.distance spindle to table	300 mm
Spindle bore	38 mm	Max.distance spindle to column	185 mm
Number of spindle speeds	Variable	Mill Motor	1.1KW
Range of spindle speed	50-1800RPM	Drive Motor	40W
Range of cross feed	0.017-0.25 mm	Torque	2.8N/m
Range of longitudinal feed	0.07-1.0mm	Max.moving speed	270mm/min
Range of inch threads	8-56 T.P.1	Max.moving travel	500mm
Range of metric threads	0.2-3.5 mm	Packing size	1500x780x1070 mm
Top slide travel	85 mm	Net weight	280kg
Cross slide travel	170 mm
Tailstock quil trave!	80 mm
Taper of tailstock quill	MT3
Motor	1.5KW

DESCRIPTION

Features
WEISS MPV290F Lathe/Mill combination unit is great updated version compare to WElSS WBP290F with movable miling head allows more complicate working. It comes fully equipped with work-holding and tool-holding equipment and accessories to get you started turning, drilling, milling, chambering, boring, and facing. Hardened and ground lathe bed guideway. All guides can be adjusted by wedge strips. Camlock D1-4 spindle with large spindle bore Φ38mm Hardened main spindle is supported by high precision, Class 5, adjustable tapered roller bearings. Tailstock for taper turning ± 5 mm adjustable. Moveable mill head based on linear guide way. Drilling and milling head can be swiveled by ± 90°. Super heavy-duty stand. Multi-function wheel with height adjustment and locking function.

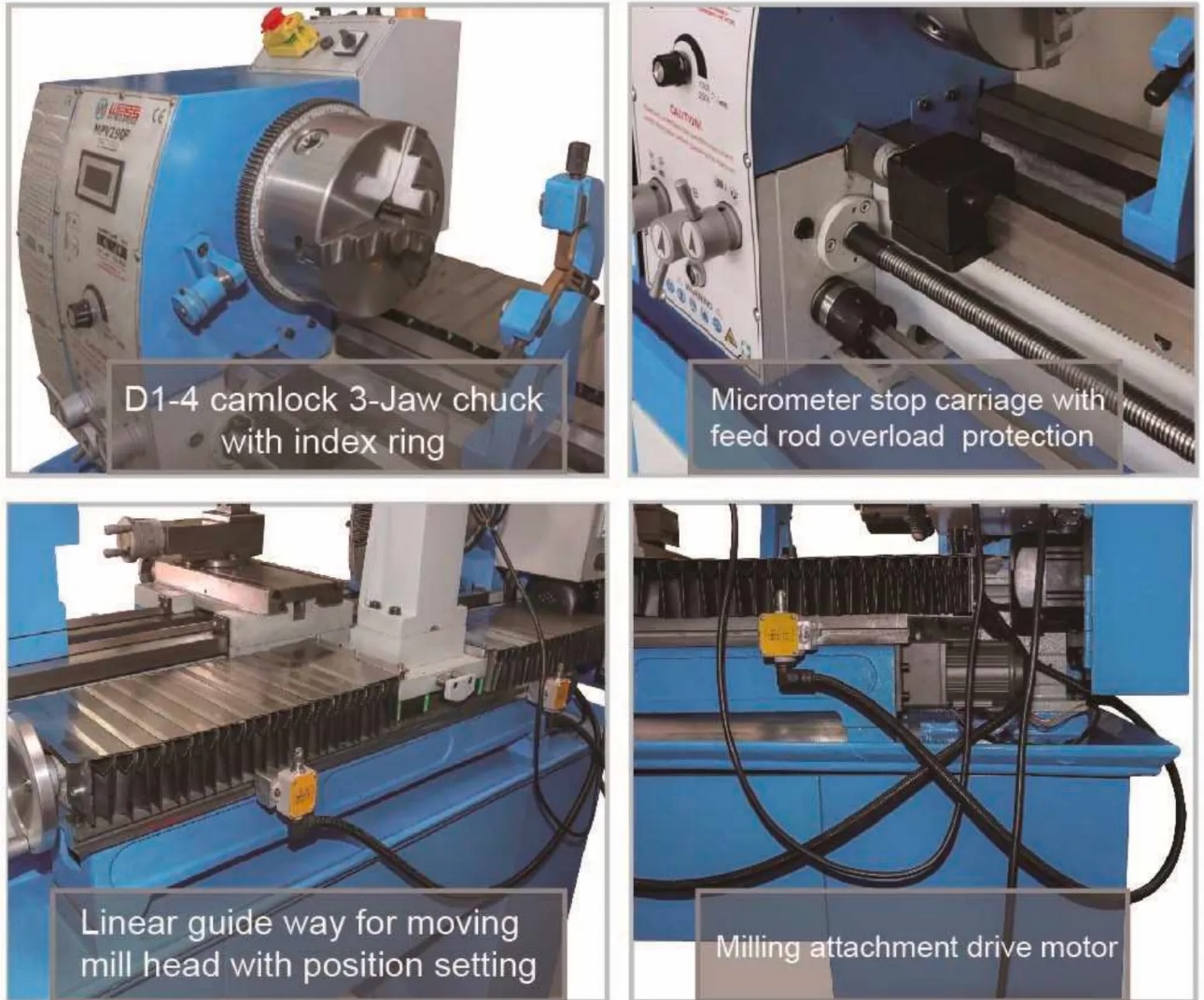

Details

OPTIONAL

Optional Accessories	Code No.
Steady rest	30108001
Follow rest	30108002
Face plate	30108003
4-Jaw chuck 160mm	22014104
Back plate for 4-jaw chuck 160mm	30108005
Leadscrew covel	30108015
Tool post cover	30108020
Theading dial (Metric)	30108025
Theading dial (lnch)	30108026
Mill chuck set ER32 MT3 3-20mm 12pc	22030233
Horizontal&Vertical totary table HV6-150mm	22111515
Semi-universal dividing head BS-0	22113005
Deluxe clamping kit sets 58pcs 12mm, M10	22038022
2 way precision tilting vise WOA100	22102104
Universal machine vise MVB100	22102024
Machine vise BMS 150	22101026
Machine vise WHV140	22101045
20 pcs Hss Tin-coated end mill set, 3-20mm	21100020
3-Axis DRO with magnetic sales D80	23073346
3-Axis DRO with optical scales SINO	23080346
Super heavy duty stand	30108039
