WBL250 VARIABLE SPEED LATHE-WBL250x550mm / WBL250x750mm

$1300.46

≥1 Piece/Pieces

Payment:

Product Attributes



Product Attributes

Model No.: WBL250

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

110cm*59cm*50cm

Single gross weight

118kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

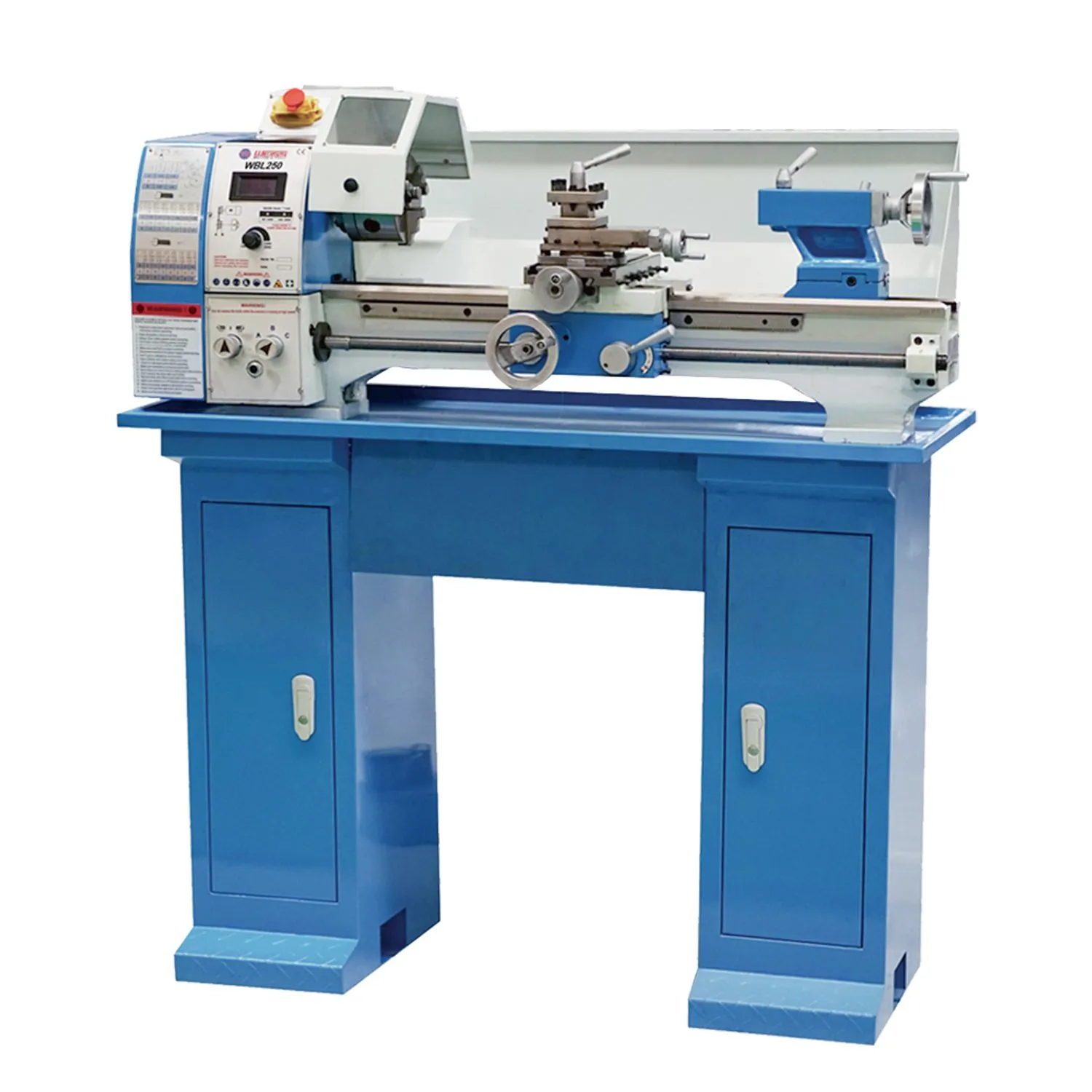

MODEL NO.: WBL250 Bench Lathe Machine

1. Perfect size for garage or workshop to take on light duty jobs.
2. Precisely manufactured.
3. Powerful, maintenance-free engine.
4. Hardened and ground V-ways bed.

5. Guaranteed concentricity of the spindle nose ≤ 0.01 mm.
6. Concentricity on the lathe chuck ≤ 0.04 mm.
7. Lead screw for thread cutting or automatic longitudinal turning.
8. All guides can be adjusted by wedge strips.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

3-Jaw chuck (125mm)
High and low variable spindle speed ranges
Digital display of speed range
Chip tray
Splash guard
Switch-off chuck cover
Toolbox & tools

DESCRIPTION

1. Perfect size for garage or workshop to take on light duty jobs.

2. Precisely manufactured.

3. Powerful, maintenance-free engine.

4. Hardened and ground V-ways bed.

5. Guaranteed concentricity of the spindle nose ≤ 0.01 mm.

6. Concentricity on the lathe chuck ≤ 0.04 mm.

7. Lead screw for thread cutting or automatic longitudinal turning.

8. All guides can be adjusted by wedge strips.

9. Right / left rotation in the control panel switchable.

10. Hardened main spindle mounted in adjustable precision tapered roller bearings.

11. Hardened spindle nose with Ø 26 mm spindle bore.

12. Handwheels on the carriage with adjustable fine scale 0.04 / 0.01 mm.

13. Tailstock for taper turning ± 5 mm adjustable.

14. Quick, easy and tool-free adjustment of the tailstock by a clamping lever.

15. Change gear set in the standard scope of delivery for thread cutting.

16. The lathe comes equipped with a full featured carriage and apron assemblies that provide super accurate cuts and finishes.

SPECIFICATION

CONTENT	METRIC	INCHES	METRIC	INCHES
ITEM NO.	10103251		10103252
Distance between centers	550mm	21-21/32"	750 mm	29-17/32"
Swing over bed	250mm	9-27/32"	250 mm	9-27/32"
Swing over cross slide	140mm	5.5"	140 mm	5.5"
Width of bed	132mm	51-3/64"	132 mm	51-3/64"
Taper of spindle bore	MT4	MT4	MT4	MT4
Spindle bore	26mm	1-1/32"	26 mm	1-1/32"
Number of spindle speeds	Variable speed		Variable speed
Range of spindle speeds	50-2000 rpm	50-2000 rpm	50-2000rpm	50-2000rpm
Range of longitudinalfeeds	0.07-0.40mm	0.0028"~0.1378"	0.07-0.40mm	0.0028"~0.1378"
Range of threads	0.2-3.5mm	8-56 T.P.I （inch）	0.2-3.5mm	8-56 T.P.I（inch）
Top slide travel	65mm	2-9/16"	65 mm	2-9/16"
Cross slide travel	105mm	4-9/64"	105 mm	4-9/64"
Tailstock quill travel	75mm	2-61/64"	75 mm	2-61/64"
Taper of tailstock quill	MT2	MT2	MT2	MT2
Brushless Motor	1.1KW	1.1KW	1.1KW	1.1KW
Machine Size	1100x590x500mm	43.31"x23.23"x19.68"	1400x590x500mm	55.12"x23.23"x19.68"
Packing size	1250x570x610mm	49.21"x22.44"x24"	1500x570x610 mm	59"x22.44"x24"
Net weight	118 Kg	260lb	138 Kg	304lb

SPECIFICATION

STANDARD ACCESSORIES:	INCLUDED
3-Jaw chuck (125mm)	yes
High and Iow variable spindle speed ranges	yes
Digital display of speed range	yes
Chip tray	yes
Splash guard	yes
Switch-off chuck cover	yes
Toolbox & tools	yes
