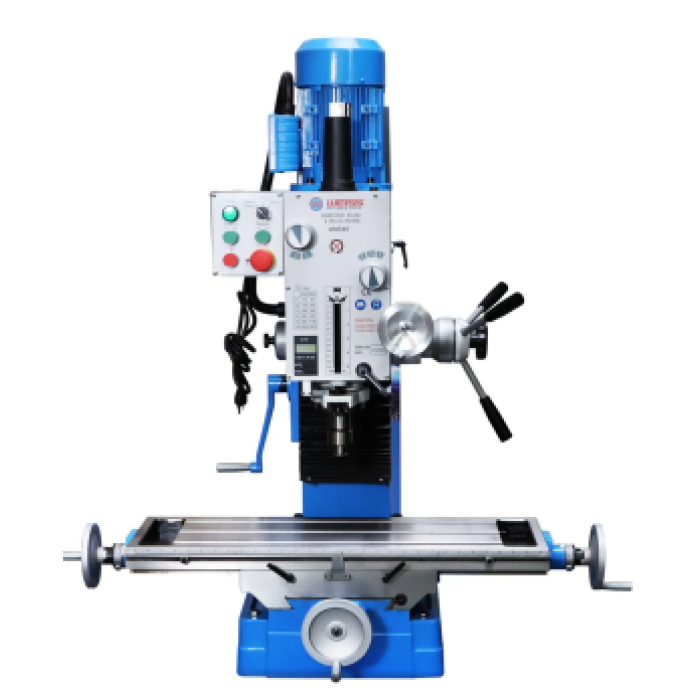

WEISS™ WMD45 9.5"x32" Benchtop Milling Machine

$1803.92
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: WEISS™ WMD45 9.5"x32"

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

57cm*28.3cm*27.5cm

Single gross weight

576kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

MODEL NO.: WMD45
INTRODUCTION:

WMD45 is the kind of WEISS heavy class milling machine for more rigidity and greater cutting ability.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

- Keyless Drill chuck capacity 5/8" with B16 taper
- Drill chuck arbor R8/B16
- Spindle sleeve R8/MT3
- Spindle sleeve MT3/MT2
- 7/16"-20 Drawbar
- Toolbox & tools
- Technical documentation

SPECIFICATION

Model	WMD45
Max. Drilling Capacity	45 mm	17-3/4"
Max. End Milling Capacity	32 mm	1-1/4"
Max. Face Milling Capacity	80 mm	3-3/16"
Table Size	800 x 240 mm	31-1/2" x 9-1/2"
Cross Travel	230 mm	9"
Longitudinal Travel	560 mm	22"
Spindle Taper	R8
Vertical Travel	300mm	11-7/8"
Spindle Stroke	120 mm	4-3/4"
T-slot	3 x 14 mm	1/8" x 9/16"
Step of Spindle Speeds	6
Range of Spindle Speeds	90 - 1920 RPM
Head Tilt	45 degrees left & right
Distance from Spindle to Column	260 mm	10-1/4"
Distance from Spindle Nose to Table	470 mm	18-1/2"
Motor	1.5KW	2Hp
Power Requirement	Single Phase 110V 60Hz
Rated Current	10A
Packing Size	57" x 28.3" x 27.5"
Net Weight	540 lbs
Gross Weight	576 lbs
Packing Size	29-1/2" x 27-3/4"x37-3/8"
Net Weight	255 lbs	263 lbs
Gross Weight	302 lbs	310 lbs

DESCRIPTION

1. WEISS heavy class milling machine for more rigidity and greater cutting ability.

2. Larger travels and work area with 9-1/2" x 32" worktable

3. Big powerful 2 HP (1500W) with R8 spindle taper

4. Six speeds gear drive system with 90-1970 RPM speed, provides easy and reliable operation

5. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis

6. All leadscrews are true inch pitch screws, larger dials with 0.001" graduate for easier reading

DETAILS

cnc machine desktop

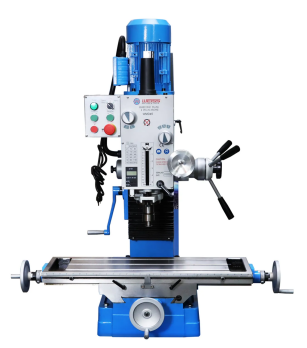

	WMD45 Heavy-Duty Mill/Drill with tapping function. Spindle is supported by high-precision P5 spindle bearings. Spindle movement can be monitored on depth ruler in both inch or metric way.
WMD45 precision manual fine down feed can be adjusted with the min. feed rate up to 0.001"
	Six speeds gear drive system provides larger torque and easy operation. Gearbox levers make it chang spindle speeds fast and easily.
▲Reversible spindle & tapping controls	▲The dovetail rails are equipped with adjustable taper inserts for greater wear resistance
▲Mill head can be tiltled 45 degrees	▲Loosen the nuts and the bolt to adjust the mill head angle
