VM32H HIGH SPEED MILLING MACHINE

$9498.37
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: VM32H

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

130cm*71cm*118.5cm

Single gross weight

269kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

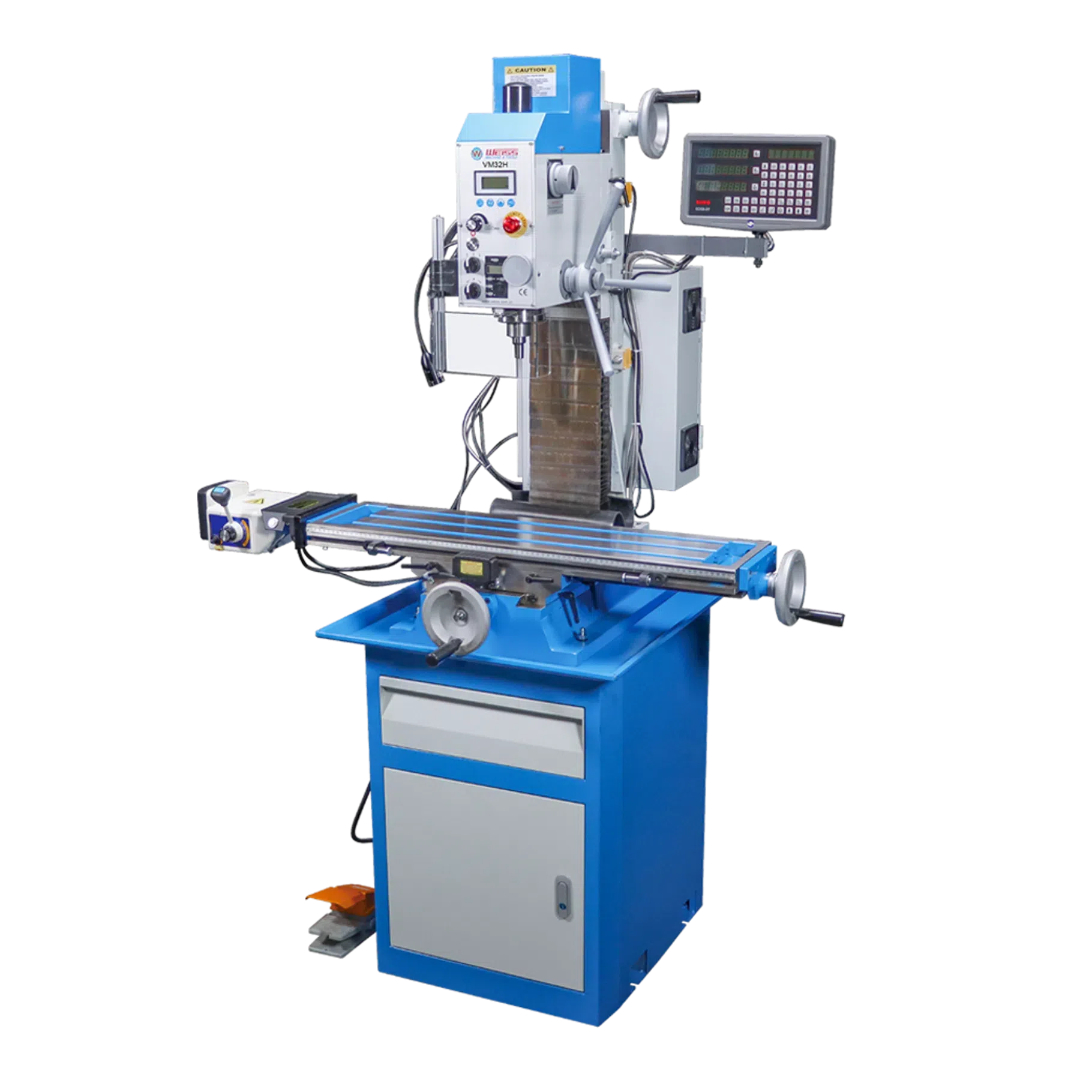

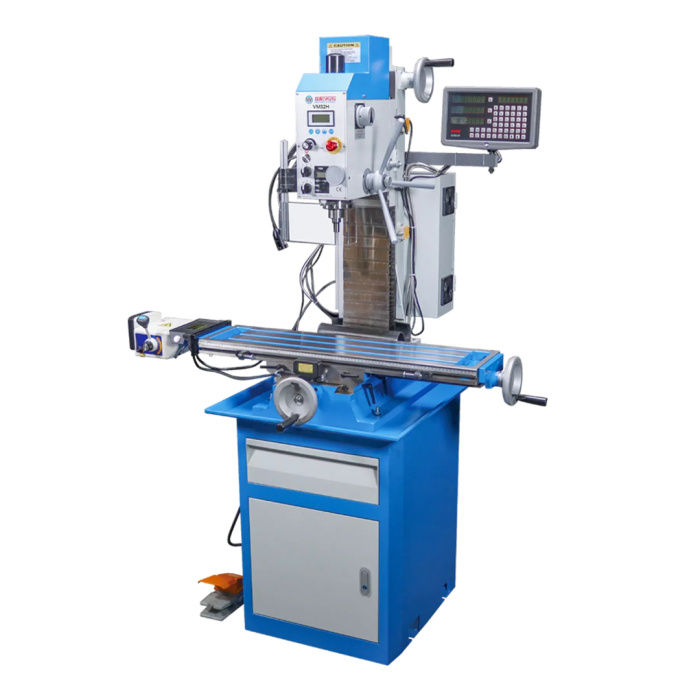

MODEL NO.: VM32H High Speed Milling Machine
INTRODUCTION:

Heavy, stable and solid column, made of high-quality gray cast iron, with ground and scraped dovetail guide, for high stability and precision.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

*Drawbar
*Drill chuck 3-16/B16
*Arbor MT3/B16-M12
*Digital Depth Ruler
*Spindle Cover With Micro Switch
*Toolbox & Tools

DESCRIPTION

1.Heavy, stable and solid column, made of high-quality gray cast iron, with ground and scraped dovetail guide, for high stability and precision.

2. Two steps belt drive mill with patent quick change

3. knob, completely change the old complex and hassle belt drive speed change way, much easy and convenient.

4. Stepless speed control

5. 1.5kw powerful brushless motor enable the mill up to 5000rpm speed

6. Massive and large-dimensioned XY stage, precisely surface-finished with T-slots

7. Dovetail guiding for X,Y&Z axis, ajustable by gibs

8. Digital speed and spindle stroke(metric&imperial mode) indicator

9. Mill head tiltableto both sides for angular boring, milling of bevels etc.

10. LED working lamp

11. Lifting motor ensures covenient height adjustment of milling head(optional)

12. Super heavy-duty stand with multi-function wheel, can be adjust height and fix as machine pad(Optional)

SPECIFICATION

CONTENT	Metric(mm)
Item No.	10203328
Max. drilling capacity	Ø32 mm
Max. end milling capacity	Ø20 mm
Max. face miling capacity	Ø76 mm
Table size	840x210 mm
Cross travel	180mm
Longitudinal travel	520mm
Vertical travel	340mm
Taper of spindle bore	MT3 / R8 / ISO30
Spindle stroke	100 mm
T-slot	3x14 mm
Step ofspindle speeds	Variable
Range of spindle speeds	80-5000 rpm
Heads tilt left & right	±90°
Distance from spindle to column	190 mm
Distance from spindle nose to table	470 mm
Motor	1500 W
Dimensions	1300x710x1185 mm
Packing size:	1100x700x1150 mm
Net Weight:	269 kg

DETAILS

STANDARD ACCESSORIES:	INCLUDED
Drawbar	yes
Drill chuck 3-16/B16	yes
Arbor MT3/B16-M12	yes
Digital Depth Ruler	yes
Spindle Cover With Micro Switch	yes
Toolbox & Tools	yes

OPTIONAL ACCESSORIES:	Item NO.:
Tapping foot pedal	30200024
X-Axis power feed	30203041
Z-Axis elevator motor	30203047
Keyless drill chuck 3-16mm	22020205
HHS 25PCS drill set 1-13mm	21210252
7 PCS HSS Tin-coated end mill set, 4-16mm	21100007
12 PCS HSS Tin-coated end mill set, 3-12mm	21100012
20 PCS HSS Tin-coated end mill set, 3-20mm	21100020
5 pcs Center drill set	21200005
58pcs clamping kits M 12 x 1.75/13.7mm	22038024
Mill chuck set ER32 MT3 3-20mm 12pcs	22030233
Machine vise BMS125	22101025
Machine vise WHV140	22101045
2 way precision tilting vise WOA100	22102104
Universal machine vise MVB150	22102026
Rotary table RT150	22111515
Semi-universal dividing head BS-0	22113005
3-Axis DRO with magnetic scales D80	23073304
Oil tray	30203010
Stand	30203030
Luxury stand	30203035
