VM35 VM35L Ball Screw type Milling Machine

 

VM35 VM35L Ball Screw type Milling Machine

$1642.43
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: VM35 VM35L

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

100cm*71cm*118.5cm

Single gross weight

245kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

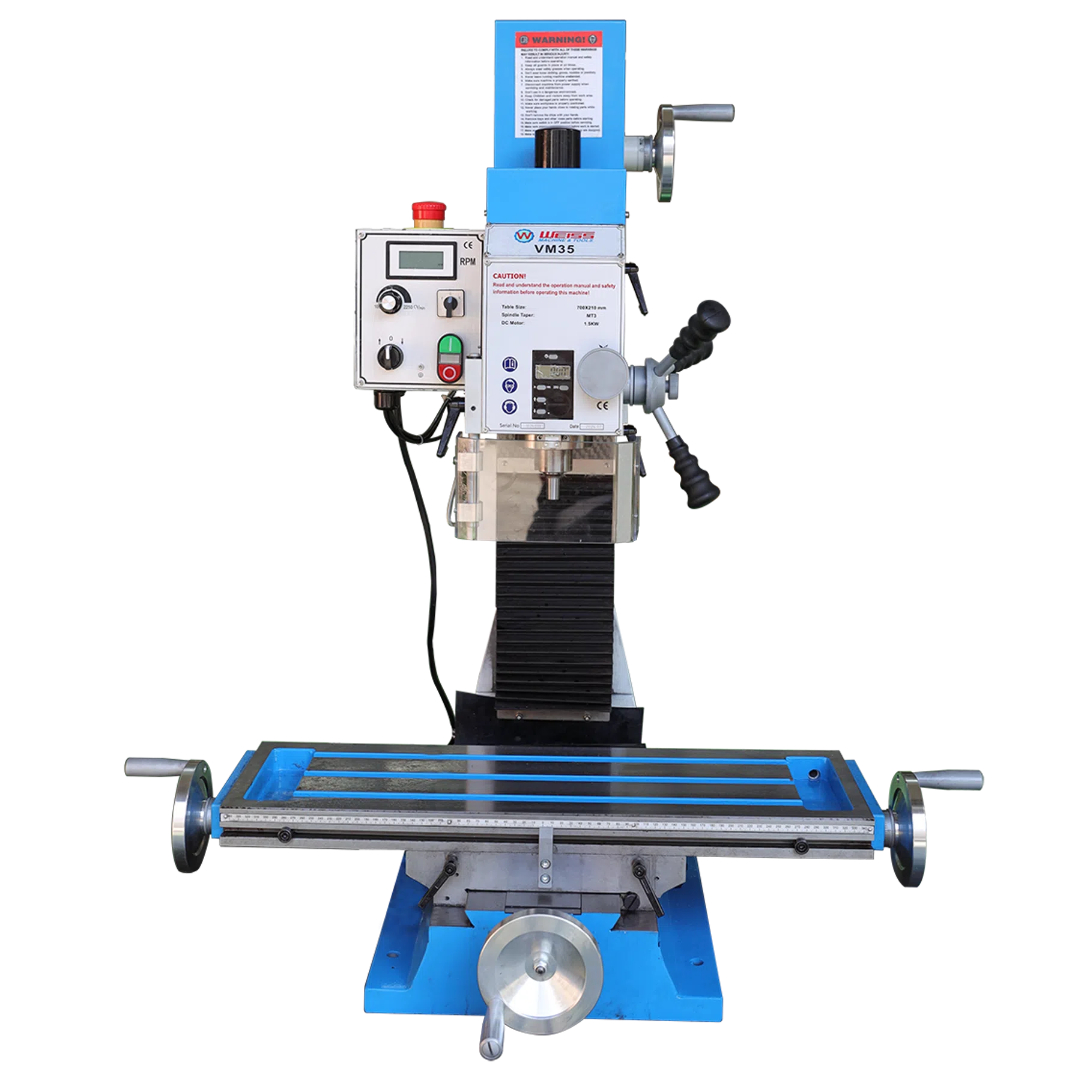

MODEL NO.: VM35 VM35L Ball Screw type Milling Machine
INTRODUCTION:

700/840x210mm table provides a large work space and the T-slots allow clamping the work-piece for an accurate and safe operation

Standard Accessories

These accessories comes with each machine for no extra charge, including:

*Drill chuck 3-16mm
*Arbor MT3/B16-M12
*Drawbar
*Digital display of speed range
*Digital spindle stroke indication
*Protect cover for spindle
*Tool box & tools

DESCRIPTION

FEATURES:

1. 700/840x210mm table provides a large work space and the T-slots allow clamping the work-piece for an accurate and safe operation

2. 1500W powerful brushless motor with high-torque and low-noise, easy maintenance

3. Single speed tooth belt drive provide convenient and reliable operation with quiet running

4. Variable-speed spindle from 100 to 2,250 rpm with DRO

5. Micrometer fine feed or standard drilling function

6. The dovetail rails are equipped with adjustable taper inserts for greater wear resistance

7. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis

8. Counterweight facilitates adjustment of the Z-axis

9. Mill head tiltable to both sides by ± 90 ° for angular boring, milling of bevels etc.

10. VM35(L) is ball-screw type based on VM32(L), wiith X & Y axis ball screw and Z axis common screw

11. VM35(L) Z axis ball screw is available for CNC conversion.

12. Manual central lubrication is available for VM35(L) (optional)

13. VM35(L) is your best choose for CNC updating conversion

ball screw milling machine

SPECIFICATION

Model No.	VM35/VM35L
ITEM NO.	10203350/10203355
Specifications：	Metric(mm)
Max. drilling capacity	30 mm
Max. end milling capacity	20mm
Max. face milling capacity	76mm
Table size	700x210 mm/840x210 mm
Table travel (X,Y)	440x180 mm/520x180 mm
X-Axis leadscrew	Ball screw
Y-Axis leadscrew	Ball screw
Z-Axis leadscrew	T screw
Spindle taper	MT3/R8/ISO30
Spindle stroke	70 mm
Step of spindle speeds	Variable
Range of spindle speeds	100-2250 rpm
Spindle incline angle	±90 º
Distance from spindle to column	190 mm
Distance from spindle nose to table	470 mm
Brushless Motor	1.5 kw
Machine Size	1000/1300x710x1185 mm
Packing size	900/1100x700x1150 mm
Net weight	205kg/225kg
Gross weight	245kg/265kg

DETAILS

STANDARD ACCESSORIES:	INCLUDED
Drill chuck 3-16mm	yes
Arbor MT3/B16-M12	yes
Drawbar	yes
Digital display of speed range	yes
Digital spindle stroke indication	yes
Protect cover for spindle	yes
Tool box & tools	yes

OPTIONAL ACCESSORIES:	Item NO.:
Tapping foot pedal	30200024
X-Axis power feed	30203041
Z-Axis elevator motor	30203047
Keyless drill chuck 3-16mm	22020205
HHS 25PCS drill set 1-13mm	21210252
7 PCS HSS Tin-coated end mill set, 4-16mm	21100007
12 PCS HSS Tin-coated end mill set, 3-12mm	21100012
20 PCS HSS Tin-coated end mill set, 3-20mm	21100020
5 pcs Center drill set	21200005
58pcs clamping kits M 12 x 1.75/13.7mm	22038024
Mill chuck set ER32 MT3 3-20mm 12pcs	22030233
Machine vise BMS125	22101025
Machine vise WHV140	22101045
2 way precision tilting vise WOA100	22102104
Universal machine vise MVB150	22102026
Rotary table RT150	22111515
Semi-universal dividing head BS-0	22113005
3-Axis DRO with magnetic scales D80	23073304
Oil tray	30203010
Stand	30203030
Luxury stand	30203035
Manual central luburication (only VM35/VM35L)	30203019
