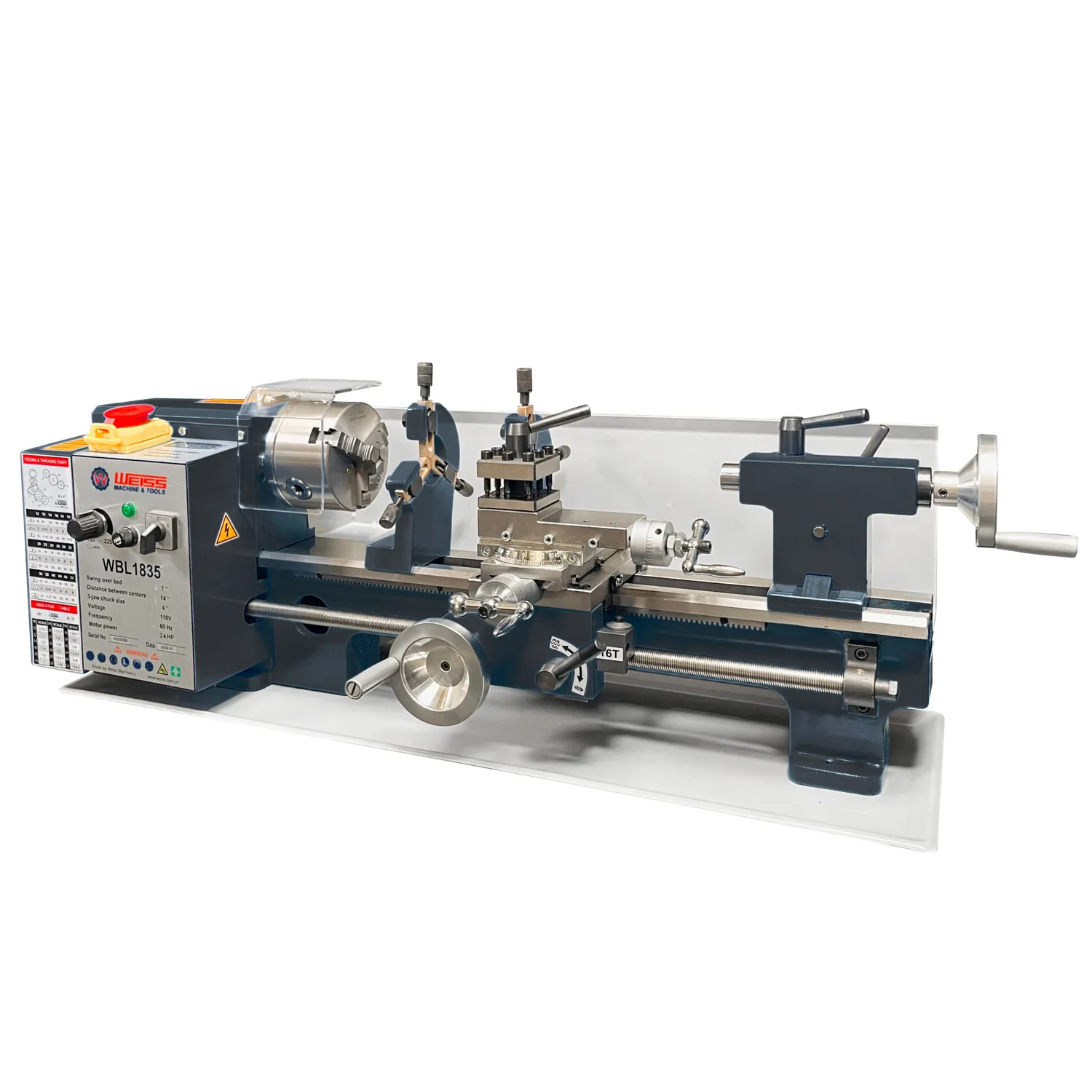

WEISS™ WBL1835 Mini Metal Lathe Machine-7

 

WEISS™ WBL1835 Mini Metal Lathe Machine-7"x14"

$569.01
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: Variable Spindle Speed Lathe

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

31cm*13cm*15cm

Single gross weight

108kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	20	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

Model No.:WBL1835

1. We strongly recommend this powerful valuable 7"x14" Mini Metal Lathe with 3/4 HP Brushless Motor provide variable speeds from 100 - 2250 rpm.
2. Amazing size but packed full of features, this strong machine could provide the perfect introduction to those wanting to start metal turning for the first time.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

（1）100mm (4") 3-Jaw Chuck
（2）4-Way tool post
（3）Splash Guard
（4）Chip Tray
（5）Toolbox & tools

Features

1. We strongly recommend this powerful valuable 7"x14" Mini Metal Lathe with 3/4 HP Brushless Motorprovide variable speeds from 100 - 2250 rpm.

2. Amazing size but packed full of features, this strong machine could provide the perfect introduction to those wanting to start metal turning for the first time.
3. This mini lathe is small enough to fit into the corner of the workshop and light enough to be truly portable. The capacities, 7" diameter and 14" between centres, are surprisingly large for a machine of this overall size.
4. This mini lathe is equipped with features found on larger lathes including 4" three-jaw chuck with external jaws, a turret tool post, full featured carriage and apron assemblies, threading dial and quick-lock tailstock

5. WEISS Nanjing factory provides reliable quality, in time service and fast technical support

Specification

Model No.	WBL1835
Item No.	10103083
Swing Over Bed	7"
Swing Over Cross Slide	4-5/16"
Distance Between Centers	13-3/4"
Width of bed	3-1/4"
Cross Slide Travel	2-9/16"
Compound Rest Travel	2-3/16"
Spindle Bore	25/32"
Spindle Nose Taper	MT3
Number of Spindle Speeds	Variable
Range of Spindle Speeds	100-2250 rpm
Number or Inch Threads	18
Range or Inch Threads	12 - 52 TPI
Number or Metric Threads	9
Range of Metric Threads	0.5 - 2.5 mm
Tailstock Barrel Taper	MT2
Tailstock Quill Travel	2-3/8"
Motor Power (Brushless type)	3/4 HP
Power requirement	Single Phase 110V 60Hz
Packing Size	31" x 13"x15"
Net Weight	95 lbs
Gross Weight	108 lbs

Details

▲Change gears with smooth and silence running

▲Enclosed electric parts protective cover provide safety from the chips and dust

▲Lathe digital speed readout tachometer on face of machine

▲Guideway induction hardened and precision ground for long life

▲Inch & Metric thread, Left & Right hand thread cutting is avaialbe

What Does The WBL1835 Toolbox Contain？

1 Dead Center MT2
3 Extemnal Jaws
1 0il Gun
1 Fuse
1 Key for 3-Jaw Chuck
6 Hex Socket Wrench 2.5.3.4.5.6.8mm
1 Doube End Head Wrench 14-17mm
11 Change Gears: 65T,60T,60T,57T.55T50T45T.40T40T.35T.30T

WBL1835 has 3/4 HP POWERFUL brushless motor with silent running. Compare to old DC motor with brush, no need to change the carbon brush any more.
High quality electronics used throughout machine for long term reliability.
Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs.
Especially with low energy consumption brings better economic benefits to users.
