WBL210D VARIABLE SPEED LATHE

Name: WBL210D VARIABLE SPEED LATHE
Brand: High-Quality Metalworking Machine
Price: 607.01 USD
Rating: 4.6 (48 reviews)

$607.01
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: WBL210D VARIABLE SPEED LATHE

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

74cm*39cm*37cm

Single gross weight

68kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	20	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

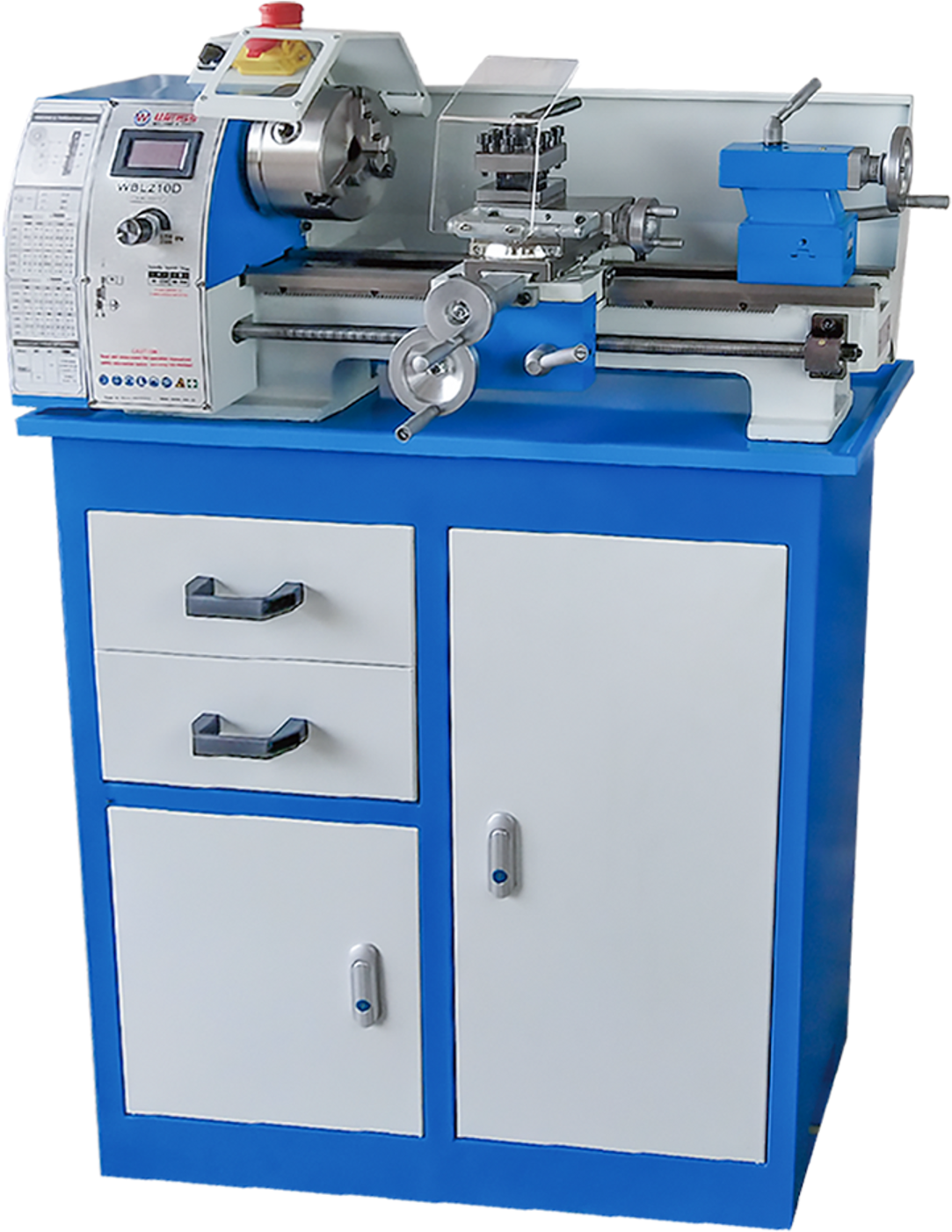

MODEL NO.: WBL210D Mini Metal Lathe
INTRODUCTION:

1. Big spindle bore 38mm.
2. Powerful 1100W brushelss motor.
3. Variable -speed spindle with high/low speed ranges.
4. V-ways bed is hardened and precision ground.
5. Spindle is supported by precision taper roller bearings.
6. Adjustable gibs for slideways.
7. Convenient quick-lock tailstock.
8. Tailstock can be offset for taper turning.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

3-Jaw chuck (100mm)
3-Jaw chuck (125mm)
High and low variable spindle speed ranges
Digital display of speed range
Chip tray
Splash guard
Switch-off chuck cover
Toolbox & tools

DESCRIPTION

1. Big spindle bore 38mm.

2. Powerful 1100W brushelss motor.

3. Variable -speed spindle with high/low speed ranges.

4. V-ways bed is hardened and precision ground.

5. Spindle is supported by precision taper roller bearings.

6. Adjustable gibs for slideways.

7. Convenient quick-lock tailstock.

8. Tailstock can be offset for taper turning.

SPECIFICATION

Model No.	WBL210D
Item No.	10103212
Specifications：	Metric(mm)	Imperial (in)
Swing over bed	210mm	8-17/64"
Swing over cross slide	130mm	5-1/8"
Width of bed	100mm	3-15/16"
Taper of spindle bore	MT5	MT5
Spindle bore	38mm	1-1/2"
Range of spindle speeds	50-2250 RPM	50-2250 RPM
Range of longitudinal feeds	0.1-0.2mm	0.0039"~0.0079"
Range of inch threads	10-44 T.P.I	10-44 T.P.I
Range of metric threads	0.5-3.5mm	0.5-3.5mm
Top slide travel	55mm	2-11/64"
Cross slide travel	75mm	2-61/64"
Tailstock quill travel	50mm	1-31/32"
Taper of tailstock quill	MT2	MT2
Brushless Motor	1.1 KW	1.1 KW
Machine Size	740x390x370mm	29-9/64"x15-23/64"x14-9/16"
Packing size	930x480x460mm	36-39/64"x18-57/64"x18-7/64"
Net weight	68 Kg	149lb

DETALIS

STANDARD ACCESSORIES:	INCLUDED
3-Jaw chuck (100mm)	yes
3-Jaw chuck (125mm)	yes
High and low variable spindle speed ranges	yes
Digital display of speed range	yes
Chip tray	yes
Splash guard	yes
Switch-off chuck cover	yes
Toolbox & tools	yes
