WBL210 VARIABLE SPEED LATHE

$590.86

≥1 Piece/Pieces

Payment:

Product Attributes



Product Attributes

Model No.: WBL210 VARIABLE SPEED LATHE

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

82cm*40cm*37cm

Single gross weight

75kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	20	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

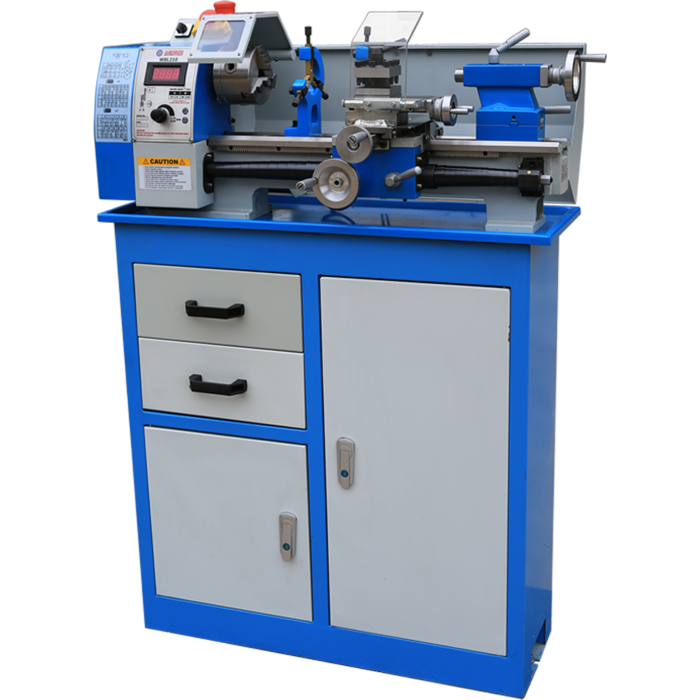

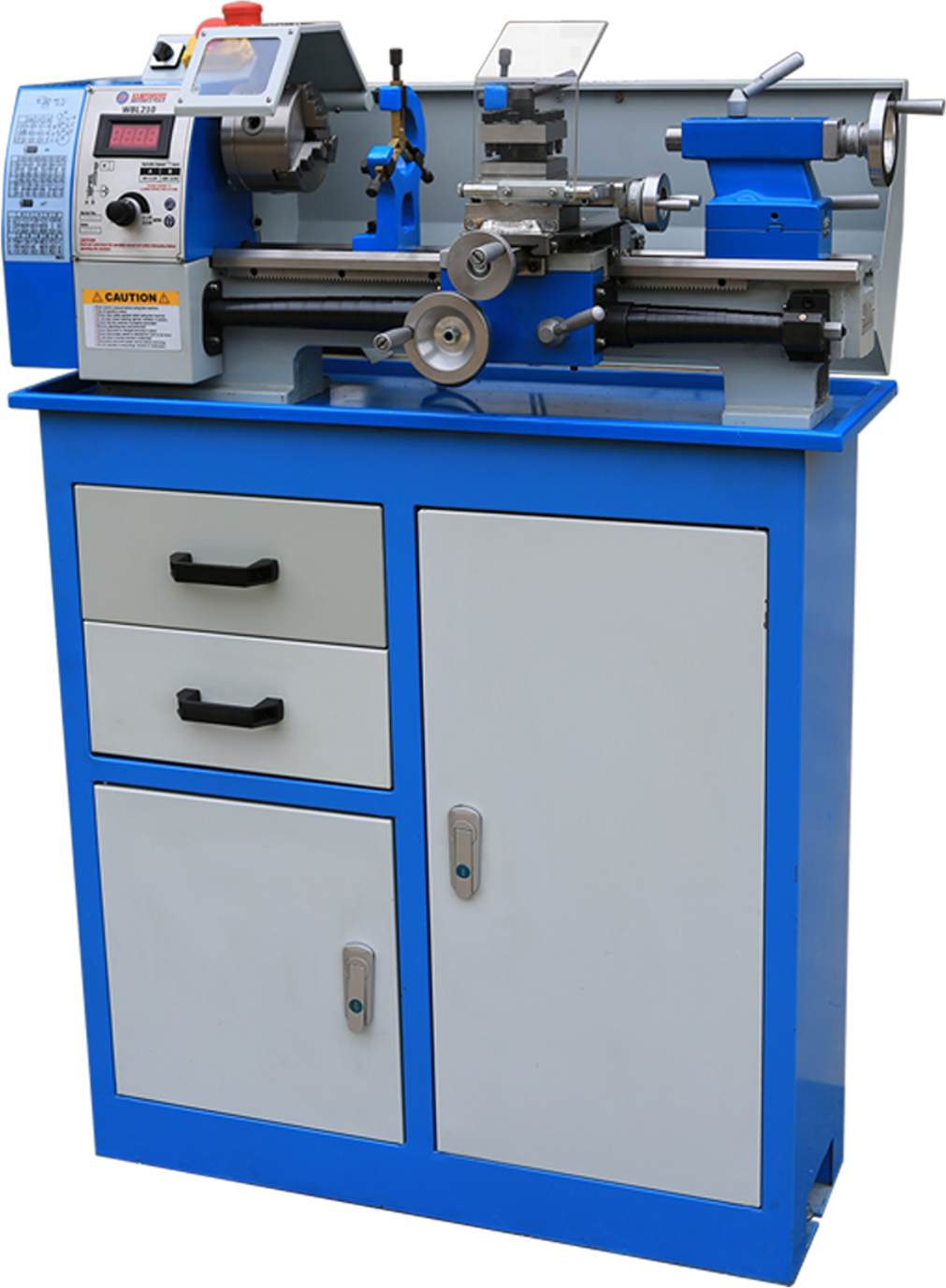

MODEL NO.: WBL210 Mini Metal Lathe
INTRODUCTION:

Perfect machine for hobby machinists, has the features and precision of larger lathes.
Powerful 750W brushelss motor
Variable -speed spindle with high/low speed ranges
V-ways bed is hardened and precision ground
Spindle is supported by precision taper roller bearings
Adjustable gibs for slideways
Convenient quick-lock tailstock
Tailstock can be offset for taper turning

Standard Accessories

These accessories comes with each machine for no extra charge, including:

3-Jaw chuck (100mm)
High and low variable spindle speed ranges
Digital display of speed range
Chip tray
Splash guard
Switch-off chuck cover
Toolbox & tools

DESCRIPTION

Perfect machine for hobby machinists, has the features and precision of larger lathes.
Powerful 750W brushelss motor
Variable -speed spindle with high/low speed ranges
V-ways bed is hardened and precision ground
Spindle is supported by precision taper roller bearings
Adjustable gibs for slideways
Convenient quick-lock tailstock
Tailstock can be offset for taper turning

SPECIFICATION

Model No.	WBL210
Item No.	10103210
Specifications：	Metric(mm)	Imperial (in)
Distance between centers	400mm	15-3/4"
Swing over bed	210mm	8-17/64"
Swing over cross slide	130mm	5-1/8"
Width of bed	100mm	3-15/16"
Taper of spindle bore	MT3	MT3
Spindle bore	21mm	53/64"
Range of spindle speeds	50-2250 RPM	50-2250 RPM
Range of longitudinal feeds	0.083-0.198mm	0.0033"~0.0078
Range of inch threads	10-44 TPI	10-44 TPI
Range of metric threads	0.3-3mm	0.3-3mm
Top slide travel	55mm	2-11/64"
Cross slide travel	75mm	2-61/64"
Tailstock quill travel	50mm	1-31/32"
Taper of tailstock quill	MT2	MT2
Brushless Motor	0.75kw	0.75 kw

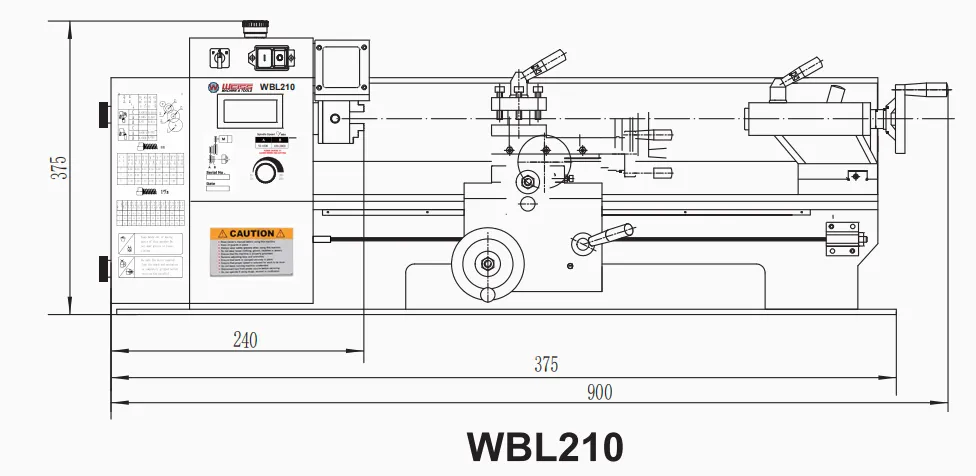

Machine Size	820x400x370mm	32-9/32"x15-3/4"x14-9/16"
Packing size	930x480x460mm	36-39/64"x18-57/64"x18-7/64"
Net weight	75Kg	165lb

DETALIS

STANDARD ACCESSORIES:	INCLUDED
3-Jaw chuck (100mm)	yes
High and low variable spindle speed ranges	yes
Digital display of speed range	yes
Chip tray	yes
Splash guard	yes
Switch-off chuck cover	yes
Toolbox & tools	yes
