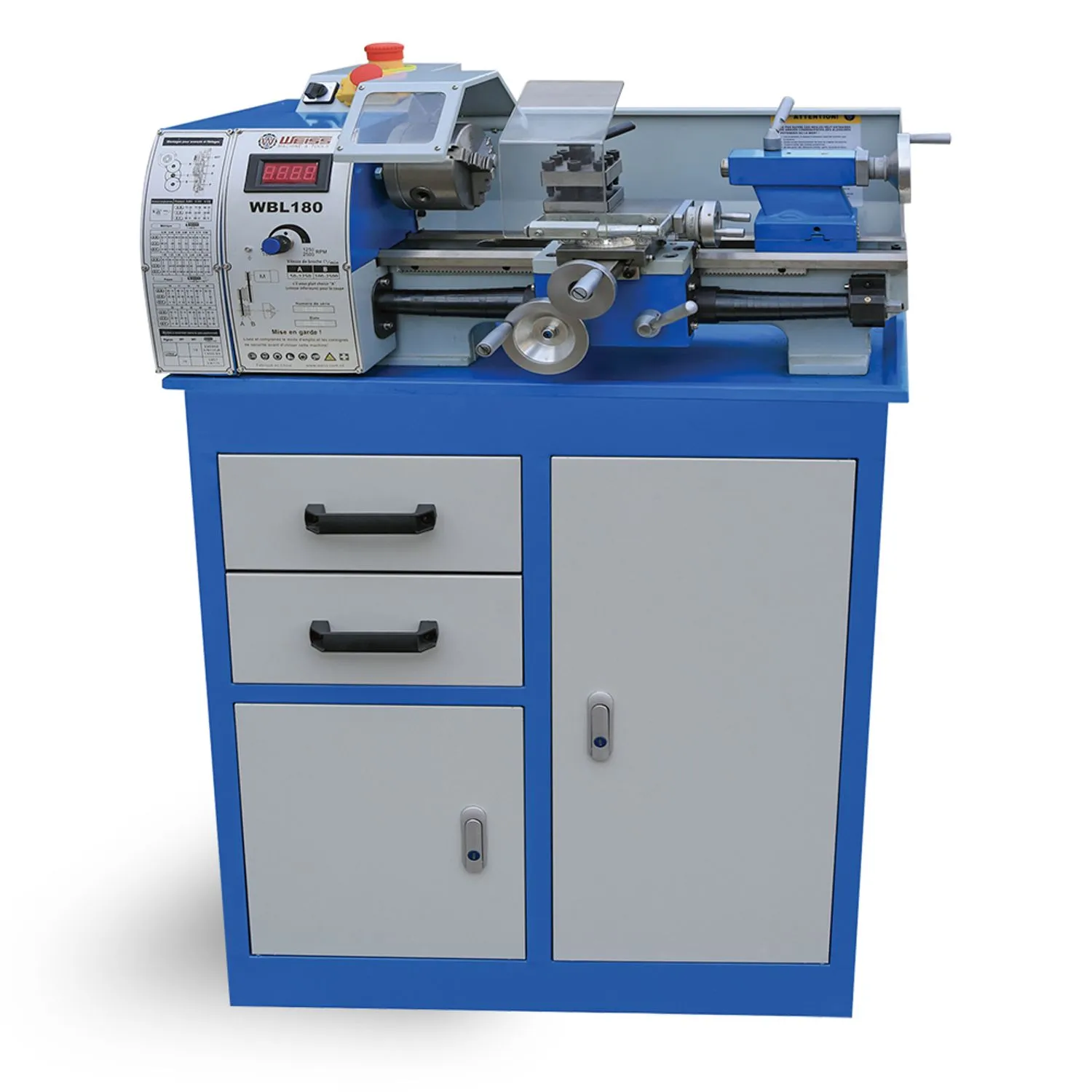

WEISS WBL180 VARIABLE SPEED LATHE MACHINE

Name: WEISS WBL180 VARIABLE SPEED LATHE MACHINE
Brand: High-Quality Metalworking Machine
Price: 569.01 USD
Rating: 4.7 (38 reviews)

$569.01
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: WEISS WBL180 VARIABLE SPEED LATHE MACHINE

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

74cm*39cm*37cm

Single gross weight

60kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	20	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

MODEL NO.: WBL180 Mini Metal Lathe
INTRODUCTION:

Perfect machine for hobby machinists, has the features and precision of larger lathes.
Powerful 750W brushelss motor
Variable -speed spindle with high/low speed ranges

Standard Accessories

These accessories comes with each machine for no extra charge, including:

3-Jaw chuck (100mm)
High and low variable spindle speed ranges
Digital display of speed range
Chip tray
Splash guard
Switch-off chuck cover
Toolbox & tools

DESCRIPTION

Perfect machine for hobby machinists, has the features and precision of larger lathes.
Powerful 750W brushelss motor
Variable -speed spindle with high/low speed ranges
V-ways bed is hardened and precision ground
Spindle is supported by precision taper roller bearings
Adjustable gibs for slideways
Convenient quick-lock tailstock
Tailstock can be offset for taper turning

SPECIFICATION

Model No.	WBL180
Item No.	10103180
Specifications：	Metric(mm)	Imperial (in)
Distance between centers	300mm	11-13/16"
Swing over bed	180mm	7-3/32"
Swing over cross slide	110mm	4-21/64"
Width of bed	100mm	3-15/16"
Taper of spindle bore	MT3	MT3
Spindle bore	21mm	53/64"
Range of spindle speeds	50-2250 RPM	50-2250 RPM
Range of longitudinal feeds	0.083-0.159mm	0.0033"~0.0063
Range of inch threads	10-44 TPI	10-44 TPI
Range of metric threads	0.3-3mm	0.3-3mm
Top slide travel	55mm	2-11/64"
Cross slide travel	75mm	2-61/64"
Tailstock quill travel	50mm	1-31/32"
Taper of tailstock quill	MT2	MT2
Brushless Motor	0.75kw	0.75kw
Machine Size	740x390x370mm	29-9/64"x15-23/64"x14-9/16"
Packing size	800x480x460mm	31-1⁄2"x18-57/64"x18-7/64"
Net weight	60Kg	132lb

DETALIS

STANDARD ACCESSORIES:	INCLUDED
3-Jaw chuck (100mm)	yes
High and low variable spindle speed ranges	yes
Digital display of speed range	yes
Chip tray	yes
Splash guard	yes
Switch-off chuck cover	yes
Toolbox & tools	yes
