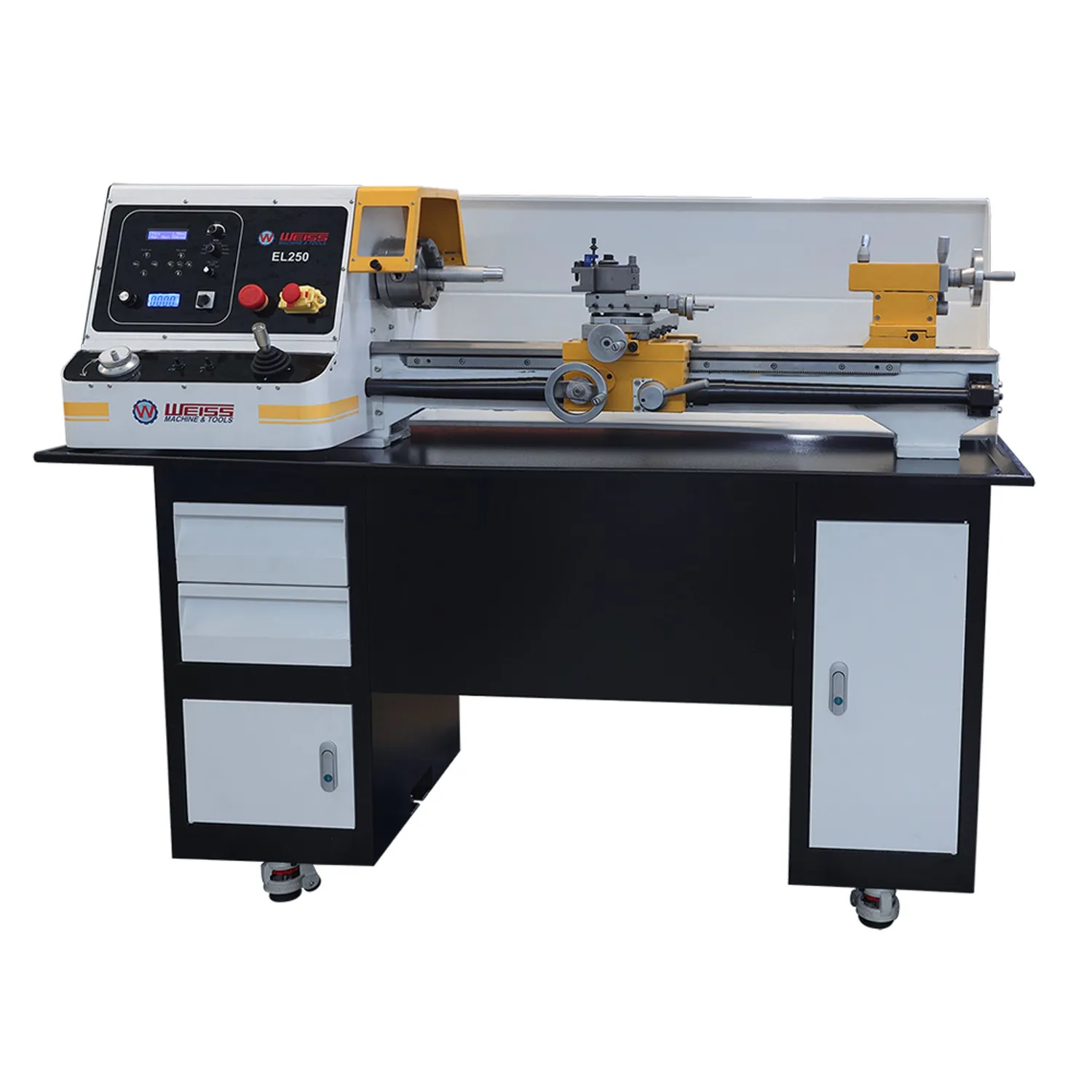

WEISS EL250 ELECTRONIC LATHE MACHINE-EL250/EL250L

WEISS EL250 ELECTRONIC LATHE MACHINE-EL250/EL250L

  • $4273.74

    ≥1 Piece/Pieces

Payment:
Product Attributes
Product Attributes

Model No.Weiss First Generation High Performance Electronic Lathe

Packaging & Delivery
Selling Units : Piece/Pieces
Single package size : 14.8cm*80cm*14.5cm
Single gross weight : 15kg
Lead Time :
Quantity(Piece/Pieces) 1>1
Est. Time(days) 20To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description
Standard Accessories


These accessories comes with each machine for no extra charge, including:

◎ 3-Jaw chuck (160mm)
◎ 4-way tool post
◎ Chuck guard
◎ Splash guard
◎ Chip tray



Features



  1. Great news for machine fans, more easy for operation, no need for highly skilled operators.
  2. Heavy duty stand with level adjustment and fix function, super convenient
  3. Full automation, allowing for easier, quicker work
  4. Highly versatile, allowing for use in the creation of all kinds of products and parts
  5. Cost efficiency, offering a range of financial benefits, including: Low setup cost, Machining costs, Labor costs and less meterial waste

Specification

Model No.:
EL250
EL250L
Item No.:
10128250
10128255
Distance Between Centers
550mm
750mm
Swing Over Bed
250mm
250mm
Swing Over Cross Slide
145mm
145mm
Width Of Bed
135mm
135mm
Taper Of Spindle Bore
MT4
MT4
Spindle Bore
26mm
26mm
Number Of Spindle Speeds
Variable Speed
Variable Speed
Range Of Spindle Speeds
50-2000mm
50-2000mm
Range Of Cross Feeds
0.02-0.4 mm/r
0.02-0.4 mm/r
Range Of Longitudinal Feeds
0.02-0.4 mm/r
0.02-0.4 mm/r
Range Of Threads
6-80 T.P.I
6-80 T.P.I
Top Slide Travel
0.25-4 mm
0.25-4 mm
Cross Slide Travel
65mm
65mm
Tailstock Quill Travel
105mm
105mm
Taper Of Tailstock Quill
75mm
75mm
Motor
1.5KW
1.5KW
Packing Size
1480*800*1450mm
1680*800*1450mm

Details


  1. Function List Screen
  2. Feed Adjust Knob
  3. Function Select Knob
  4. Sub Function Knob
  5. F/R Switch
  6. Magnetic Switch
  7. Emergency Stop Swtich
  8. Joystick
  9. Feed Axis Selection
  10. Feed Rate Selection
  11. Handwheel
  12. Spindle Speed Display
  13. Speed Adjust Knob
  14. Manual Select Button
  15. Position Limited Button
