Product Description



Introduction

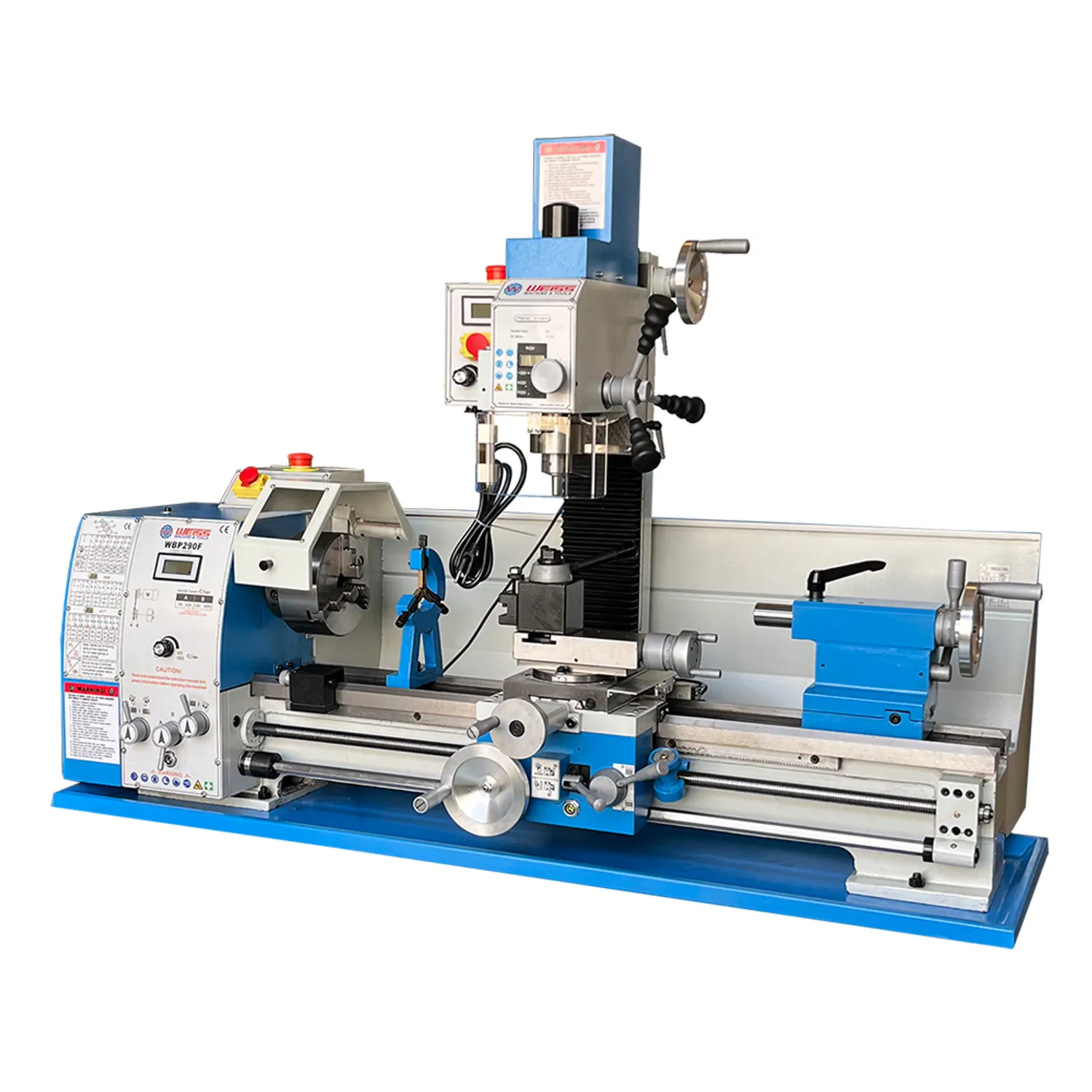

MODEL NO.: WBP290F Lathe & Mill&Drill Combination Machine
INTRODUCTION:

WBP290F is an excellent choice for those who want to machine the parts without having to dedicate a large amount of shop space.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

*3-Jaw chuck (160mm)
*Lathe high/low variable spindle speed
*Digital display of speed range
*Leadscrew and feed rod
*Power longitudinal&cross feed
*Micrometer carriage stop
*Chip tray
*Splash guard
*Switch-off chuck cover
*Dril chuck 3-16mm
*Arbor
*Drawbar
*Toolbox & tools

DESCRIPTION

FEATURES:

1. WBP290F is an excellent choice for those who want to machine the parts without having to dedicate a large amount of shop space.

2. This combination unit adds a variable-speed milling head to the lathe, giving you two versatile metal working machines in one. It fully equipped with work-holding and tool-holding equipment and accessories to get you started turning, drilling, milling,chambering, boring, and facing

3. Hardened and ground V-ways bed

4.Separate lead screw and feed rod

5. All guides can be adjusted by wedge strips

6. Right / left rotation in the control panel switchable

7. Hardened main spindle mounted in adjustable precision tapered roller bearings

8. Lathe hardened spindle nose with Ø 38 mm spindle bore

9. Tailstock for taper turning ± 5 mm adjustable

10. Quick, easy and tool-free adjustment of the tailstock by a clamping lever

11. Change gear set in the standard scope of delivery for thread cutting

12. Mill spindle is supported by high precision taper roller bearing

13. Mill head with high torque, low noise and powerful 1100W brushless motor, easy maintenance

14. Single speed tooth belt drive provide convenient and reliable operation with quiet running for mill head

15. Variable-speed mill spindle from 100 to 2,250 rpm with DRO

16. Coarse and fine mill spindle downfeed

17. Drilling and milling head can be tilted by ±90° on both sides, thus drilling and milling in angular position as required

combination machine

SPECIFICATION

CONTENT	METRIC INFO.
ITEM NO.	10103295
Specifications：	Metric(mm)
Lathe
Distance between centers	750 mm
Swing over bed	280 mm
Swing over cross slide	170mm
Width of bed	180mm
Taper of spindle bore	MT5/D1-4
Spindle bore	38 mm
Range of spindle speeds	100-1800 RPM(Variable)
Range of longitudinal feeds	0.07-1.0mm
Range of cross feeds	0.017-0.25mm
Range of inch threads	8-56 T.P.I
Range of metric threads	0.2-3.5 mm
Top slide travel	85 mm
Cross slide travel	170 mm
Tailstock quill travel	80 mm
Taper of tailstock quill	MT3
Motor	1.5 KW
Mill & Drill
Taper of spindle bore	MT3
Spindle stroke	50 mm
Spindle speed	100-2250 rpm
Max. distance spindle to table	260mm
Max. distance spindle to column	185 mm
Motor	1.1 KW
Packing size	1500x760x1050 mm
Net weight	280 kg

DETAILS

STANDARD ACCESSORIES:	INCLUDED
3-Jaw chuck (160mm)	yes
Lathe high/low variable spindle speed	yes
Digital display of speed range	yes
Leadscrew and feed rod	yes
Power longitudinal&cross feed	yes
Micrometer carriage stop	yes
Chip tray	yes
Splash guard	yes
Switch-off chuck cover	yes
Drill chuck 3-16mm	yes
Arbor	yes
Drawbar	yes
Toolbox & tools	yes

OPTIONAL ACCESSORIES:	Item NO.:
Steady rest	30108001
Follow rest	30108002
Face plate（240mm)	30108003
4-Jaw chuck(160mm)	22014104
Back plate for 4-Jaw chuck	30108005
Leadscrew cover	30108015
Tool post cover	30108020
Threading dial(Metric/Inch)	30108025/30108026
7 pcs 12mm Alloy turning tools	21020117
HHS 25PCS drill sets 1-13mm	21210252
20 PCS HSS Tin-coated end mill set, 3-20mm	21100020
5 pcs Center drill set	21200005
58pcs clamping kits M 10 x 1.5/11.7mm	22038022
Mill chuck set ER32 MT3 3-20mm 12pcs	22030233
Machine vise BMS100	22101024
2 way precision tilting vise WOA100	22102104
Rotary table RT100	22111510
Wedge type tool post sets 251-111	22123021
Euro type tool post set TOOA1	22121001
ER32 Collet Fixture ER32-130/160	22050109
Z-Axis elevator motor	30202047
3-Axis Magnetic DRO (D80)	23073347
3-Axis Optical DRO (SINO)	23080347
Stand	30108030
Luxury Stand	30108035
