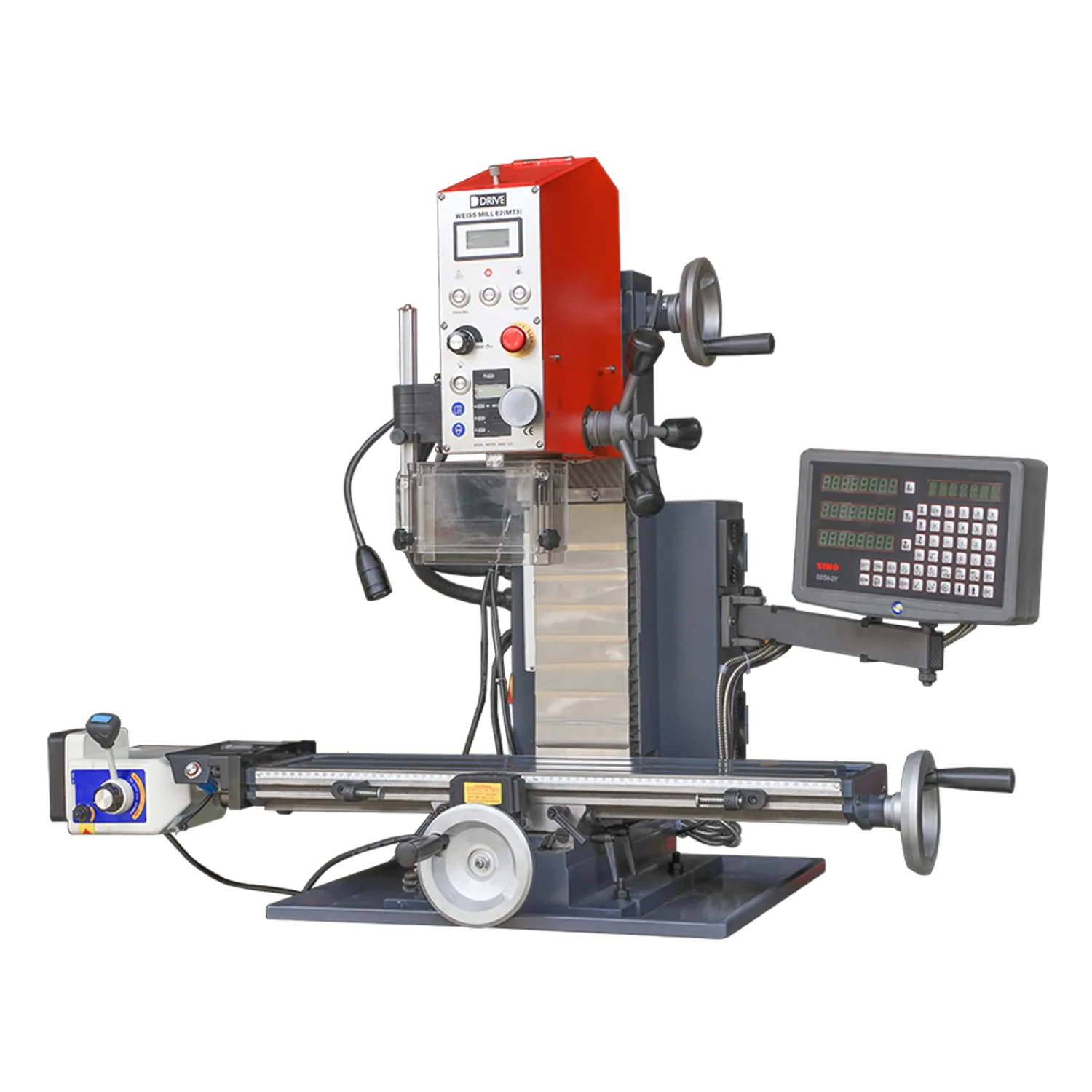

WEISS™ E2 Directly Drive Drilling&Milling Machine

 

WEISS™ E2 Directly Drive Drilling&Milling Machine

$1233.96
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: WEISS™ E2 Directly Drive Drilling&Milling Machine

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

85cm*68cm*77cm

Single gross weight

128kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

MODEL NO.: E2
INTRODUCTION:

1.Medium capacity, small footprint machine with MT3 spindle nose, allowing the use of widely used attachments. Use for precision machining, prototypes, maintenance, laboratories.
2. Maintenance free thanks to the Weiss direct transmission: no pinion, no belt, nonoise, no worries !
3. Massive and large-dimensioned XY stage, precisely surface-finished with T-slots
4. Dovetail guiding for X,Y&Z axis, ajustable by gibs
5. Digital speed and spindle stroke(metric&imperial mode)
6. Direct drive (no belts or gears)，absolutely silent operation
7. Very good precision and excellent rigidity
8. Spindle speed adjustable by electronic speed control
9. Micrometric fine feed or standard drilling function
10. Mill head tiltable to both sides for angular boring, milling of bevels etc.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

•Tapping foot pedal
•Drawbar M12
•Keyless Drill chuck 1-16mm
•Arbor MT3/B16-M12
•Digital display of speed range
•Digital spindle stroke indication
•Protect cover for spindle
•Separate electric box
•LED working light
Tool box & tools

SPECIFICATION

Model No.	E2
ITEM NO.	10203002
Specifications：	Metric(mm)
Max. drilling capacity	Φ25 mm
Max. end milling capacity	Φ16 mm
Max. face milling capacity	Φ63 mm
Table size	700x180 mm
Cross travel	145 mm
Longitudinal travel	480 mm
Vertical travel	230 mm
Taper of spindle bore	MT2/MT3/R8
Spindle stroke	70 mm
T-slot	3x12 mm
Step of spindle speeds	Variable
Range of spindle speeds	100-2500 rpm
Heads tilt left & right	±90°1
Distance from spindle to column	70 mm
Distance from spindle nose to table	290 mm
Motor	1.1 KW
Dimensions	850x680x770 mm
Packing size:	880x710x900 mm
Net Weight:	128 Kg

DESCRIPTION

Features：

drilling and milling machine

OPTIONAL

OPTIONAL ACCESSORIES:	Item NO.:
Power feed for X-axis(E2/E3)	30302041/30303041
Elevator motor for Z-axis(E2/E3)	30302047/30303047
Mill chuck set ER32 MT3 3-20mm 12pcs	22030233
Horizontal&Vertical totary table HV8-200mm	22111520
Semi-universal dividing head BS-0	22113005
Deluxe clamping kit sets 58pcs 12mm, M10(E2)	22038022
Deluxe clamping kit sets 58pcs 14mm, M12(E3)	22038024
2 way precision tilting vise WOA100	22102104
Universal machine vise MVB100	22102024
Machine vise BMS 150	22101026
Machine vise WHV140	22101045
25 pcsHHS drillset 1-13mm	21210252
7 pcs HSS Tin-coated end mill set, 4-16mm	21100007
20 pcs HSS Tin-coated end mill set, 3-20mm	21100020
5 pcs Center drill set	21200005
Stand(E2/E3)	30302030/30303030
Luxury stand(E2/E3)	30302035/30303035
3-Axis DRO with magnetic sales D80(E2/E3)	23073302/23073304
3-Axis DRO with grating scales SlNO(E2/E3)	23080302/23080304
