WBL210E VARIABLE SPEED LATHE

$759

≥1 Piece/Pieces

Payment:

Product Attributes



Product Attributes

Model No.: WBL210E

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

82cm*38.5cm*41cm

Single gross weight

70kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

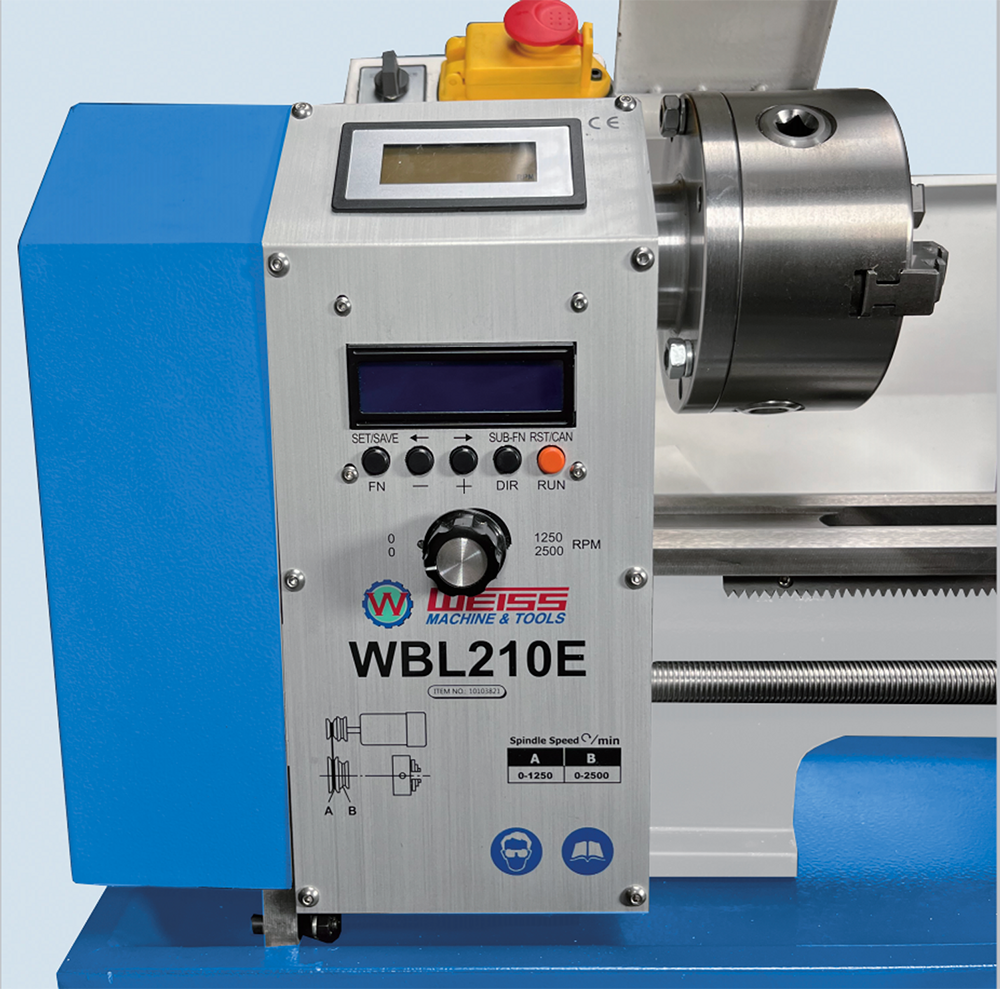

MODEL NO.: WBL210E Mini Metal Lathe
INTRODUCTION:

1. Big spindle bore 38mm.
2. Powerful 1100W brushelss motor.
3. Variable -speed spindle with high/low speed ranges.
4. V-ways bed is hardened and precision ground.
5. Spindle is supported by precision taper roller bearings.
6. Adjustable gibs for slideways.
7. Convenient quick-lock tailstock.
8. Tailstock can be offset for taper turning.
9. WBL210E uses an electronic change gear system, eliminating the trouble of replacing the change gears.
10. WBL210E can achieve one -click settings of the threading pitch and processing length and automatically cut the thread.
11. WBL210E has reverse feed for cutting left-hand threads.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

3-Jaw chuck (100mm)
3-Jaw chuck (125mm)
High and low variable spindle speed ranges
Digital display of speed range
Chip tray
Splash guard
Switch-off chuck cover
Toolbox & tools

DESCRIPTION

1. Big spindle bore 38mm.

2. Powerful 1100W brushelss motor.

3. Variable -speed spindle with high/low speed ranges.

4. V-ways bed is hardened and precision ground.

5. Spindle is supported by precision taper roller bearings.

6. Adjustable gibs for slideways.

7. Convenient quick-lock tailstock.

8. Tailstock can be offset for taper turning.

9. WBL210E uses an electronic change gear system, eliminating the trouble of replacing the change gears.

10. WBL210E can achieve one -click settings of the threading pitch and processing length and automatically cut the thread.

11. WBL210E has reverse feed for cutting left-hand threads.

SPECIFICATION

STANDARD ACCESSORIES:	INCLUDED
3-Jaw chuck (100mm)	yes
3-Jaw chuck (125mm)	yes
High and low variable spindle speed ranges	yes
Digital display of speed range	yes
Chip tray	yes
Splash guard	yes
Switch-off chuck cover	yes
Toolbox & tools	yes

STANDARD ACCESSORIES:	INCLUDED
3-Jaw chuck (100mm)	yes
3-Jaw chuck (125mm)	yes
High and low variable spindle speed ranges	yes
Digital display of speed range	yes
Chip tray	yes
Splash guard	yes
Switch-off chuck cover	yes
Toolbox & tools	yes

Model No.	WBL210E
Item No.	10103721
Specifications：	Metric(mm)	Imperial (in)
Distance between centers	400mm	15-3/4"
Swing over bed	210mm	8-17/64"
Swing over cross slide	130mm	5-1/8"
Width of bed	100mm	3-15/16"
Taper of spindle bore	MT5	MT5
Spindle bore	38mm	1-1/2"
Range of spindle speeds	50-2250 RPM	50-2250 RPM
Range of longitudinal feeds	0.1-0.4mm	0.0039"~0.0157"
Range of inch threads	6-96 T.P.I	6-96 T.P.I
Range of metric threads	0.10-5.0mm	0.10-5.0mm
Top slide travel	55mm	2-11/64"
Cross slide travel	65mm	2-9/16"
Tailstock quill travel	50mm	1-31/32"
Taper of tailstock quill	MT2	MT2
Brushless Motor	1.1 KW	1.1 KW
Machine Size	820x385x410mm	32-9/32"x15-5/32"x16-9/64"
Packing size	930x460x500mm	36-39/64"x18-7/64"x19-11/16"
Net weight	70 Kg	154lb

DETAILS

Model No.	WBL210E
Item No.	10103721
Specifications：	Metric(mm)	Imperial (in)
Distance between centers	400mm	15-3/4"
Swing over bed	210mm	8-17/64"
Swing over cross slide	130mm	5-1/8"
Width of bed	100mm	3-15/16"
Taper of spindle bore	MT5	MT5
Spindle bore	38mm	1-1/2"
Range of spindle speeds	50-2250 RPM	50-2250 RPM
Range of longitudinal feeds	0.1-0.4mm	0.0039"~0.0157"
Range of inch threads	6-96 T.P.I	6-96 T.P.I
Range of metric threads	0.10-5.0mm	0.10-5.0mm
Top slide travel	55mm	2-11/64"
Cross slide travel	65mm	2-9/16"
Tailstock quill travel	50mm	1-31/32"
Taper of tailstock quill	MT2	MT2
Brushless Motor	1.1 KW	1.1 KW
Machine Size	820x385x410mm	32-9/32"x15-5/32"x16-9/64"
Packing size	930x460x500mm	36-39/64"x18-7/64"x19-11/16"
Net weight	70 Kg	154lb
