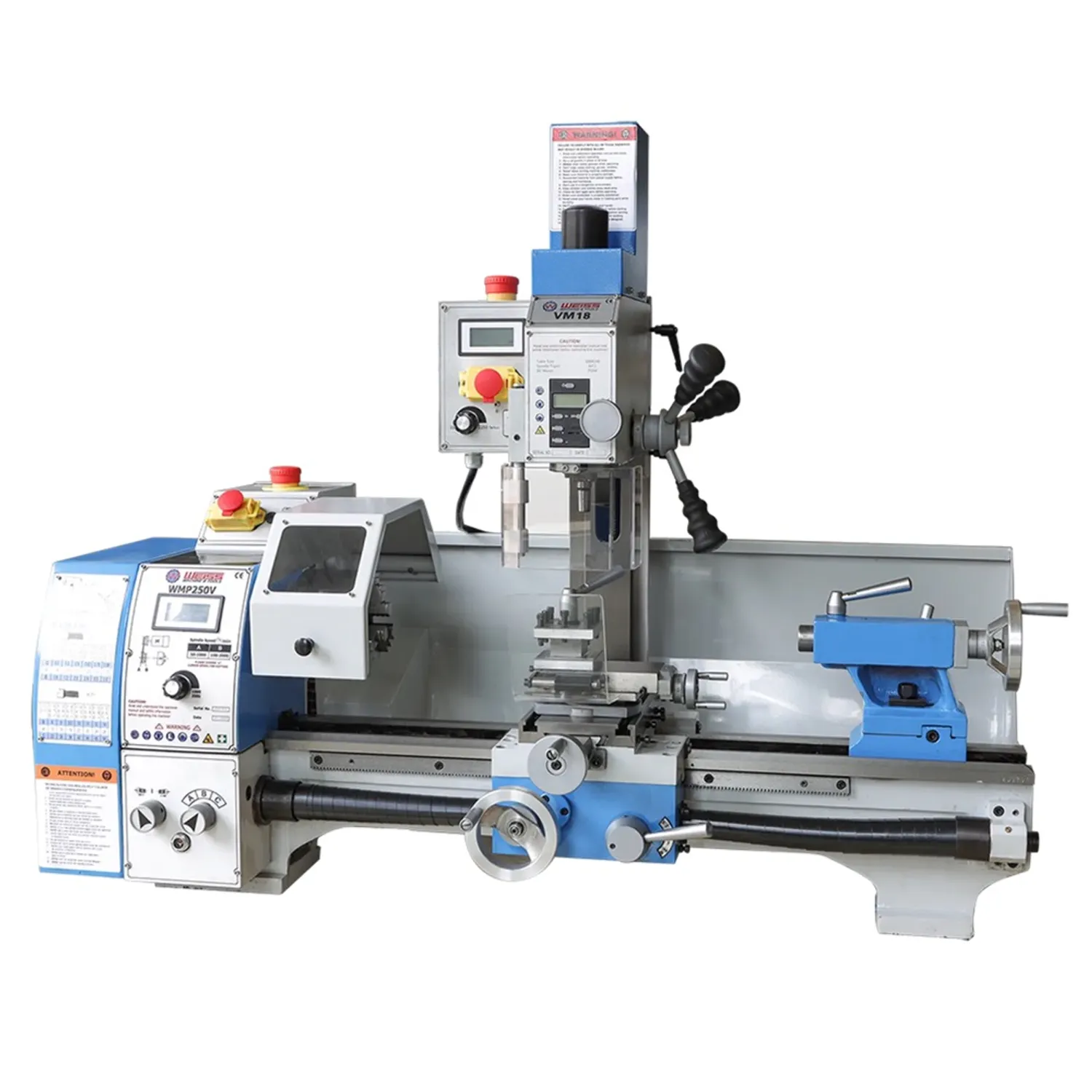

WEISS Variable Speed Combo Lathe & Mill-WBP250 / WBP250L

 

WEISS Variable Speed Combo Lathe & Mill-WBP250 / WBP250L

$1993.91
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: WBP250(WBP250x550)-10"x22"; WBP250L(WBP250x750)-10"x30"

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

150cm*63cm*95cm

Single gross weight

205kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

MODEL NO.: WBP250
INTRODUCTION:

WEISS WBP250F Lathe / Mill combination unit is an excellent choice for those who want to machine the parts without having to dedicate a large amount of shop space.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

*3-Jaw chuck (125mm)
*High and low variable spindle speed ranges
*Digital display of speed range
*Chip tray
*Splash guard
*Switch-off chuck cover
*Drill chuck 3-16mm
*Arbor
*Drawbar
*Toolbox & tools

SPECIFICATION

MODEL NO.	WBP250x550	WBP250x750
ITEM NO.	10110302	10110303
Lathe
Distance between centers	550mm	750 mm
Swing over bed	Φ250 mm	Φ250 mm
Swing over cross slide	Φ140 mm	Φ140 mm
Width of bed	135 mm	135 mm
Taper of spindle bore	MT4	MT4
Spindle bore	26 mm	26 mm
Number of spindle speeds	Variable	Variable
Range of spindle speeds	50-2000 RPM	50-2000 RPM
Range of longitudinal feeds	0.07-0.40 mm	0.07-0.40 mm
Range of cross feeds	-	-
Range of inch threads	8-56 T.P.I	8-56 T.P.I
Range of metric threads	0.2-3.5 mm	0.2-3.5 mm
Top slide travel	65 mm	65 mm
Cross slide travel	105 mm	105 mm
Tailstock quill travel	75 mm	75 mm
Taper of tailstock quill	MT2	MT2
Motor	1.1KW	1.1KW
Mill & Drill
Taper of spindle bore	MT2	MT2
Spindle stroke	50 mm	50 mm
Spindle speed	100-2250 rpm	100-2250 rpm
Max. distance spindle to table	240 mm	240 mm
Max. distance spindle to column	170 mm	170 mm
Motor	0.75 KW	0.75 KW
Packing size	1250x630x950 mm	1500x630x950 mm
Net weight	192	`205 kg

DESCRIPTION

FEATURES:

1. WBP Series lathe / Mill combination unit is an excellent choice for those who want to machine the parts without having to dedicate a large amount of shop space

2. This combination unit adds a variable-speed milling head to the lathe, giving you two versatile metal working machines in one

3. Hardened and ground V-ways bed

4. Lead screw for thread cutting or automatic longitudinal turning

5. All guides can be adjusted by wedge strips

6. Right / left rotation in the control panel switchable

7. Hardened main spindle mounted in adjustable precision tapered roller bearings

8. Lathe hardened spindle nose with Ø 26 mm spindle bore

9. Tailstock for taper turning ± 5 mm adjustable

10. Quick, easy and tool-free adjustment of the tailstock by a clamping lever

11. Change gear set in the standard scope of delivery for thread cutting

12. WBP250F has power cross feed function

13. Mill spindle is supported by high precision taper roller bearing

14. Mill head with high torque, low noise and powerful 750W brushless motor, easy maintenance

15. Single speed tooth belt drive provide convenient and reliable

16. Operation with quiet running for mill head

17. Variable-speed mill spindle from 100 to 2,250 rpm with DRO

18. Coarse and fine mill spindle downfeed

19. Drilling and milling head can be tilted by ±90° on both sides, thus drilling and milling in angular position as required

combination metal lathe and milling machine
