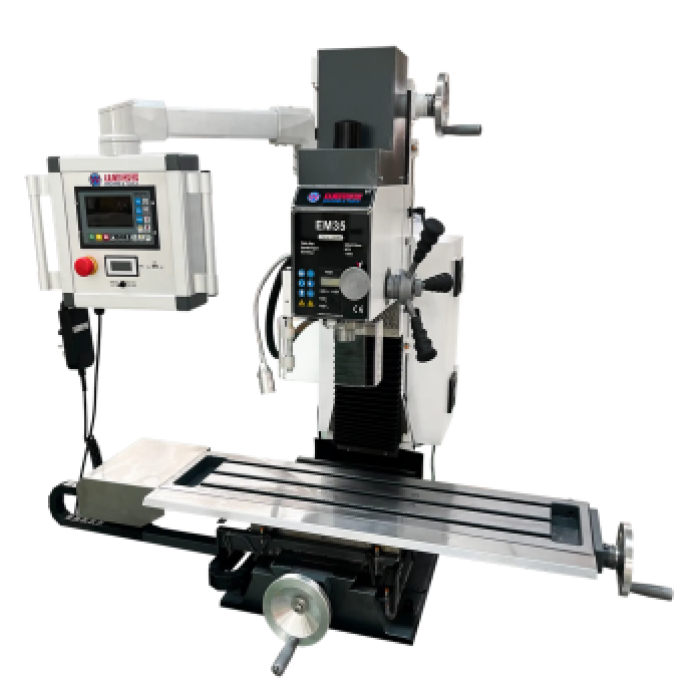

EM35 HIGH PERFORMANCE ELECTRONIC MILLING MACHINE

 

EM35 HIGH PERFORMANCE ELECTRONIC MILLING MACHINE

$3703.78
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: EM35

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

85cm*68cm*77cm

Single gross weight

128kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

Standard Accessories

These accessories comes with each machine for no extra charge, including:

DDCS V3.1 3/4 Axis Departure Controller
Swivelling Control Panel
Electronic Handwheel
3 Axis Ball Screws and Servo Motor
Drill Chuck 1-16mm
Drill Chuck Arbor
Drawbar
Manual Central Lubrication
Tool Box & Tools

Features

EM series Electronic milling machine is our new innovation products in order provide more easy, covenient and high efficiency operation on milling machine.
All axes with ball screws
Servo drive on all axes (X, Y and Z axis)
Manual central lubrication for all guide ways
Swivelling control panel
DDCS V3.1 3/4 axis departure controller
5 inches inch TFT screen, resolution: 480x272,17 operation keys
The 17 -key can complete the common off -control operation, and support the FANUC compatibility of the G instruction set with strong universality.
Support U disk to read G instructions, G instruction file size is not required;
Support standard MPG;
Support the single -axis manual movement and continuous operation of the single -axis of the panel;
The hand wheel and the extension keyboard can control and operate the controller;
Especially quiet running
Stable dovetail guide, precision ground and scraped with adjustable wedges
Manual spindle fine feed
Drilling and milling head can be swiveled by ± 90°
Super heavy-duty stand with multi-function wheel, can be adjust height and fix as machine pad(Optional)

SPECIFICATION

Model No.	EM28
Item No.	10203828
Content	Metric	Imperial
Max. drilling capacity	Φ25mm	Φ63/64"
Max. end milling capacity	Φ16mm	Φ5/8"
Max. face milling capacity	Φ63mm	Φ2-31/64"
Table size	700x180mm	27-9/16"x7-3/32"
Cross travel	145mm	5-45/64"
Longitudinal travel	480mm	18-57/64"
Vertical travel	230mm	9-1/16"
Taper of spindle bore	MT2/MT3/R8	R8
Spindle stroke	70mm	2-3/4"
T-slot	3x12mm	1/8"x15/32"
Step of spindle speeds	Variable	Variable
Range of spindle speeds	100-2500rpm	100-2500rpm
X-Aixs continuous operation	6 N.m	6 N.m
Y-Aixs continuous operation	8 N.m	8 N.m
Z-Aixs continuous operation	8 N.m	8 N.m
X-Aixs	4000mm/min	157"-31/64"/min
Y-Aixs	4000mm/min	157"-31/64"/min
Z-Aixs	4000mm/min	157"-31/64"/min
Heads tilt left & right	±90º	±90º
Distance from spindle to column	170mm	6-11/16"
Distance from spindle nose to table	290mm	11-27/64"
Motor	1100W	1100W
Dimensions	850x680x770mm	33-15/32"x26-49/64"x30-5/16"
Packing size:	880x710x900mm	34-41/64"x27-61/64"x35-7/16"
Net Weight:	128kg	282lb

DETAILS

EM28 & EM35 ｜ Video introduction about our electronic milling machine
