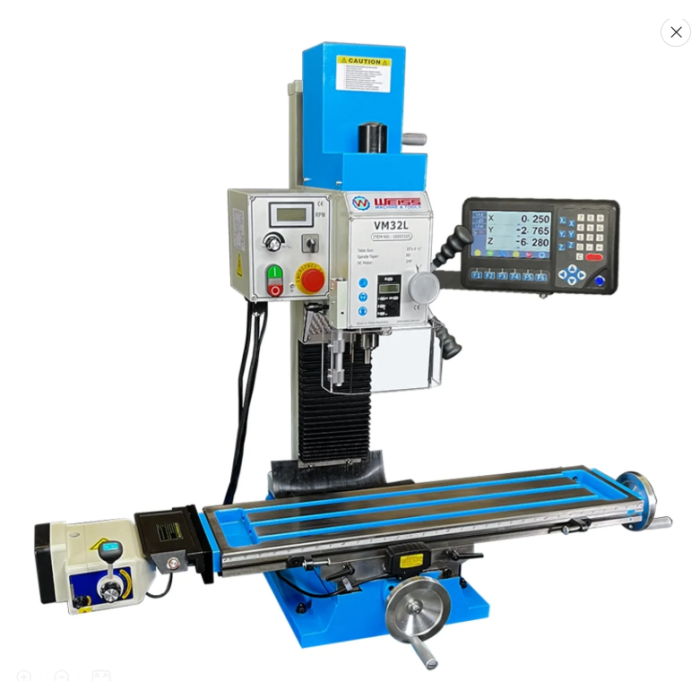

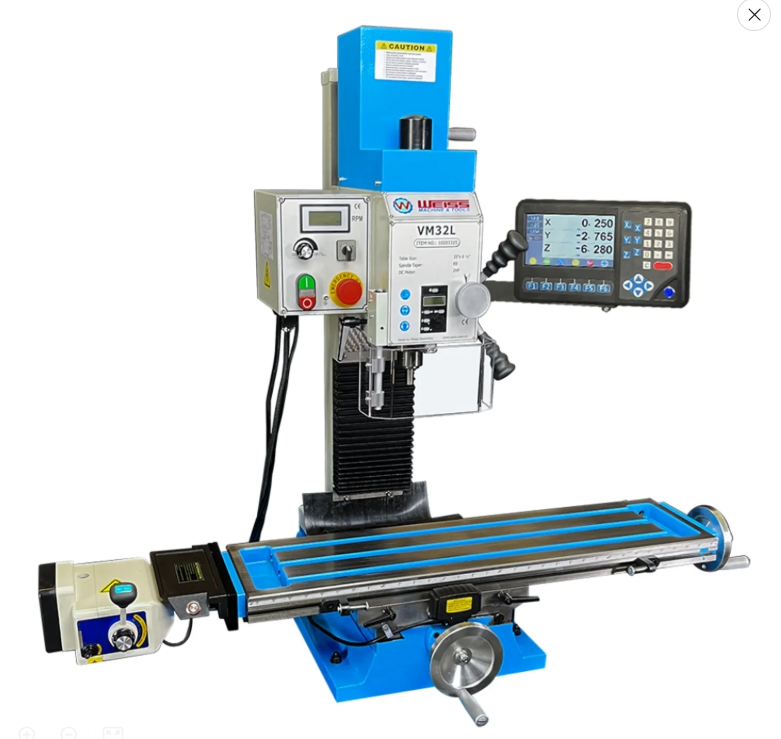

WEISS™ 8" x 33" VM32L-DP / VM32L-DEP Benchtop Milling Machine

$2155.39
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: WEISS™ 8" x 33"

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

0cm*0cm*0cm

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

MODEL NO.: 10203325
INTRODUCTION:

WEISS VM32L provides much larger travels and work area with 8-1/4" x 33" worktable

Standard Accessories

These accessories comes with each machine for no extra charge, including:

1. Keyless drill chuck capacity 5/8" with JT33 taper
2. Drill chuck arbor R8/JT33
3. Foot tapping swtich
4. 7/16"-20 Drawbar
5. Toolbox & Tools
6.Technical Documentation
7.3-Axis DRO system with magnetic scales & 7" true color LCD screen
8.X-Axis power feed
9.Z-Axis elevator motor

SPECIFICATION

Model Number	VM32L-DP	VM32L-DEP
Item Number	10203325	10203325
Max. Drilling Capacity	1-1/4"	1-1/4"
Max. End Milling Capacity	3/4"	3/4"
Max. Face Milling Capacity	3"	3"
Spindle Stroke	2-3/4"	2-3/4"
Rang of Spindle Speeds	Variable 100-2250 rpm	Variable 100-2250 rpm
Taper of Spindle	R8	R8
Drawbar	7/16"-20	7/16"-20
Max. Distance Spindle to Table	18-1/2"	18-1/2"
Max. Distance Spindle to Column	8-1/4"	8-1/4"
T-Slot Size	3-9/16"	3-9/16"
T-Slot Centers	2-1/2"	2-1/2"
Table Size	33" x 8 - 1/4"	33" x 8 - 1/4"
Cross Travel (Y-Axis)	8-5/8"	8-5/8"
Longitudinal Travel (X-Axis)	22-1/2"	22-1/2"
Vertical Travel (Z-Axis)	18-1/2"	18-1/2"
Table Leadscrew Pitch	10 TPI (.100" Per Turn)	10 TPI (.100" Per Turn)
Headstock Tilt Lef&Right	±90°	±90°
Motor Power (Brushless type)	2 HP	2 HP
Power requirement	Single Phase 110V 60Hz	Single Phase 110V 60Hz
Standard Equipment	Keyless drill chuck capacity 5/8" with JT33 taper Drill chuck arbor R8/JT33 Foot tapping swtich 7/16"-20 Drawbar Toolbox & Tools Technical Documentation 3-Axis DRO system with magnetic scales & 7" true color LCD screen X-Axis power feed	Keyless drill chuck capacity 5/8" with JT33 taper Drill chuck arbor R8/JT33 Foot tapping swtich 7/16"-20 Drawbar Toolbox & Tools Technical Documentation 3-Axis DRO system with magnetic scales & 7" true color LCD screen X-Axis power feed Z-Axis elevator motor

DESCRIPTION

1. WEISS VM32L provides much larger travels and work area with 8-1/4" x 33" worktable

2. Big powerful 2 HP (1500W) Brushless DC Variable Speed Motor

3. Single speed tooth belt driving system with 100-2250 RPM speed, provides easy and reliable operation, super silence runnning

4. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y and Z-axis

5. All leadscrews are true inch pitch screws, larger dials with .002" graduate for easier reading

6. The X-axis table power feed provides precision powered longitudinal table movement with adjustable limit stops for preset range of motion

7. Z-Axis elevator motor with up/down limit stops protection

8. 7" true color LCD screen 3-Axis DRO system with magnetic scale
