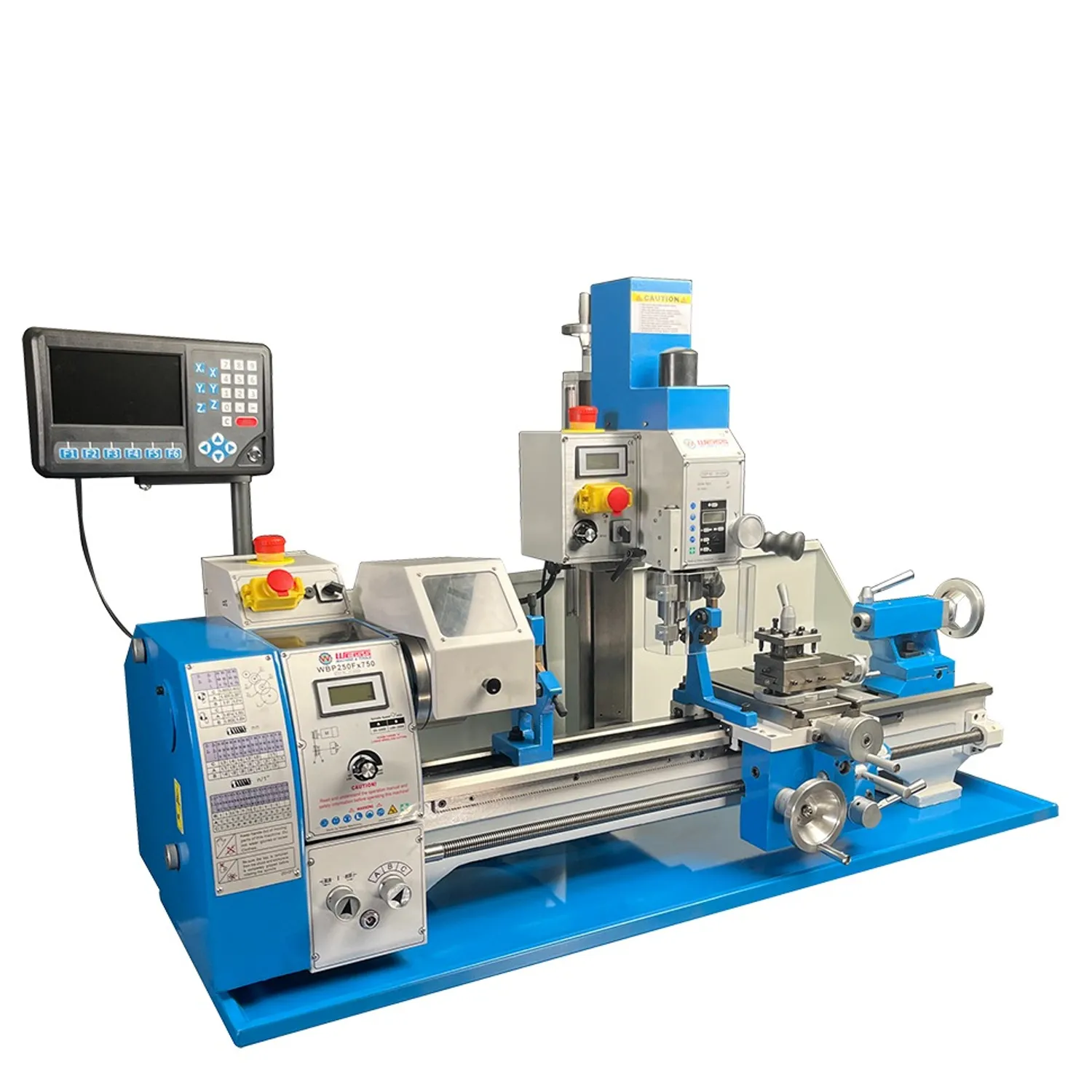

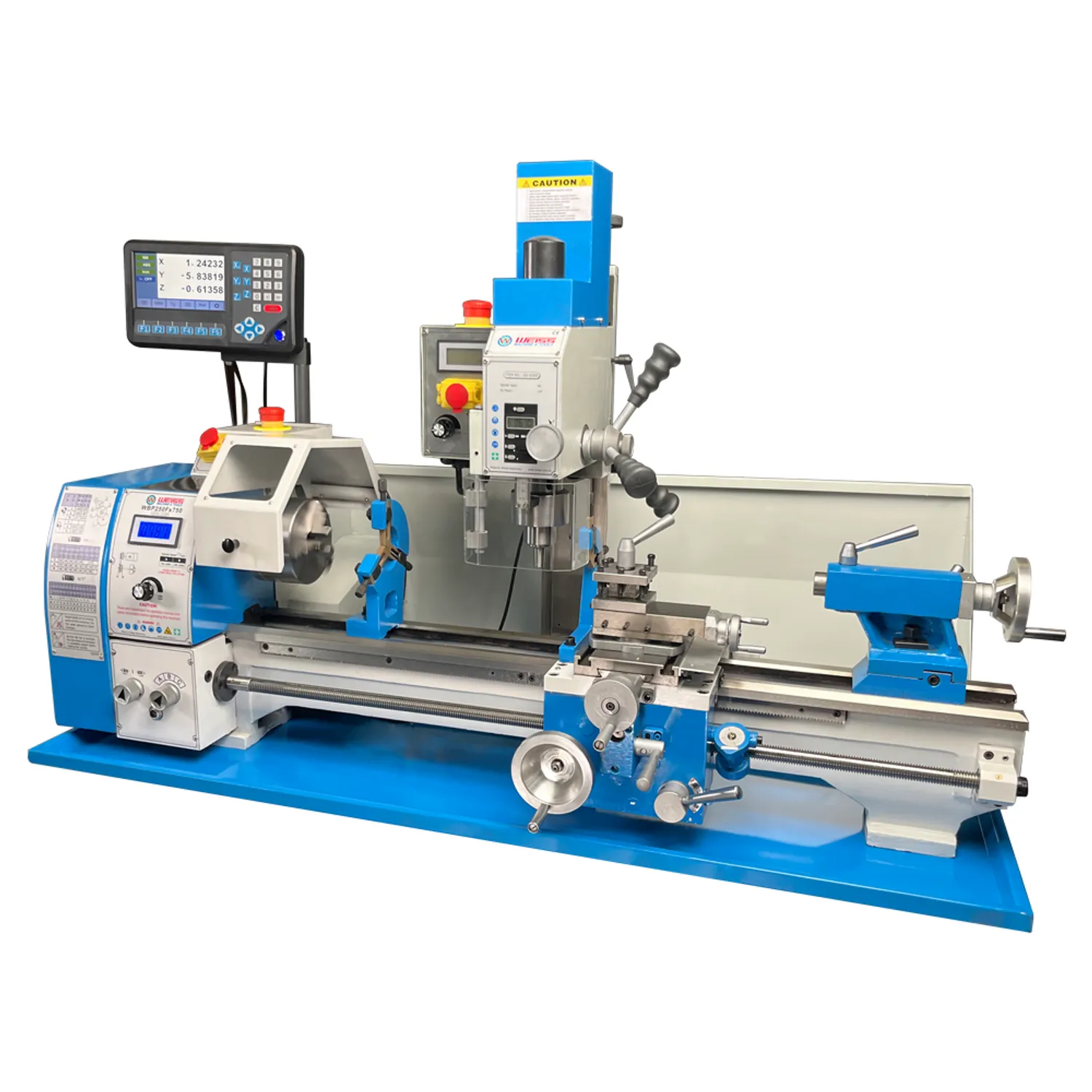

WEISS WBP250F-D / WBP250LF-D Variable Speed Combo Lathe & Mill With 3-Axis DRO

 

WEISS WBP250F-D / WBP250LF-D Variable Speed Combo Lathe & Mill With 3-Axis DRO

$2620.86
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: WBP250F-D (WBP250Fx550 With 3-Axis DRO) -10"x22"; WBP250LF-D (WBP250Fx750 With 3-Axis DRO) -10"x30"

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

0cm*0cm*0cm

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

MODEL NO.: WBP250Fx550-D (WBP250F-D)/ WBP250Fx750(WBP250LF-D)

DESCRIPTION:

Standard Accessories

These accessories comes with each machine for no extra charge, including:

Steady rest, follow rest, faceplate, MT2 living center, Keyless drill chuck, 3-Axis DRO, metal toolbox&tools

Features

WBP250Fx550 / WBP250Fx750 machine tools are equipped with Steady Rest, Follow Rest, Faceplate, MT2 Living Center, Keyless Drill Chuck, 3-Axis DRO, Metal Toolbox&Tools

1. WEISS WBL250F Series Lathe / Mill combination unit is an excellent choice for those who want to machine the parts without having to dedicate a large amount of shop space.

2. WBL250F Series adds a variable-speed milling head to the lathe, giving you two versatile metal working machines in one. It fully equipped with work-holding and tool-holding equipment and accessories to get you started turning, drilling, milling, chambering, boring, and facing

3. Real inch leadscrew and all feed screws fo even, easy measurements. No need metric conversions

4. Power cross feed is available

5. Powerful brushless motors for both lathe&mill

6. 3-axis DRO system shows carriage travel, cross slide travel and milling head travel

7. Rated at 110V, single phase, 60Hz input power

8. WEISS factory provides reliable quality, in time service and fast technical support

Want TOP quality from China with best price? Come to WEISS, you will get the excellent value!

Specification

WBP250F x 550 With 3-Axis DRO

WBP250F x 750 With 3-Axis DRO

Model No.	WBP250F x 550	WBP250LF x 750
Item No.	10110305	10110306
LATHE SPECIFICATIONS
Distance between centers	22"	30"
Swing over bed	10"	10"
Swing over cross slide	5-1/2"	5-1/2"
Bed width	5.3"	5.3"
Spindle bore	1"	1"
Spindle taper	MT#4	MT#4
Spindle speeds	50-2000 RPM (Variable)	50-2000 RPM (Variable)
Range of cross feeds	0.0014-0.004"/rev.	0.0014-0.004"/rev.
Range of longitudinal feeds	0.0025-0.014"/rev.	0.0025-0.014"/rev.
Inch thread range	(37) 8–80 TPI	(37) 8–80 TPI
Metric thread range	(21) 0.35–3 mm	(21) 0.35–3 mm
Cross slide travel	4-1/8"	4-1/8"
Compound rest travel	2-3/4"	2-3/4"
Tailstock taper	MT#2	MT#2
Tailstock quill travel	2-3/4"	2-3/4"
Motor type	Brushless 1.5HP	Brushless 1.5HP
Power supply	110V/1Ph/60Hz	110V/1Ph/60Hz
Rated current	10A	10A
MILL SPECIFICATIONS
Drilling capacity	5/8" (steel)	5/8" (steel)
End milling capacity	5/8"	5/8"
Spindle taper	R8	R8
Spindle travel	2"	2"
Spindle speeds	100-2250 rpm (Variable)	100-2250 rpm (Variable)
Distance from spindle to table	9.45"	9.45"
Distance from spindle to bed	11.3"	11.3"
Head tilt	90° Left/Right	90° Left/Right
T-slots	two at 3/8", 3.937" on center, 10" long	two at 3/8", 3.937" on center, 10" long
Drawbar	7/16-16 TPI, 9-5/8" L	7/16-16 TPI, 9-5/8" L
Motor type	Brushless, 1HP	Brushless, 1HP
Power supply	110V/1Ph/60Hz	110V/1Ph/60Hz
Rated current	10A	10A
MAIN SPECIFICATIONS
Packing size	49" W × 25" D × 37" H	60" W × 25" D × 37" H
Approx. shipping weight	607 lbs.	655 lbs.

Details

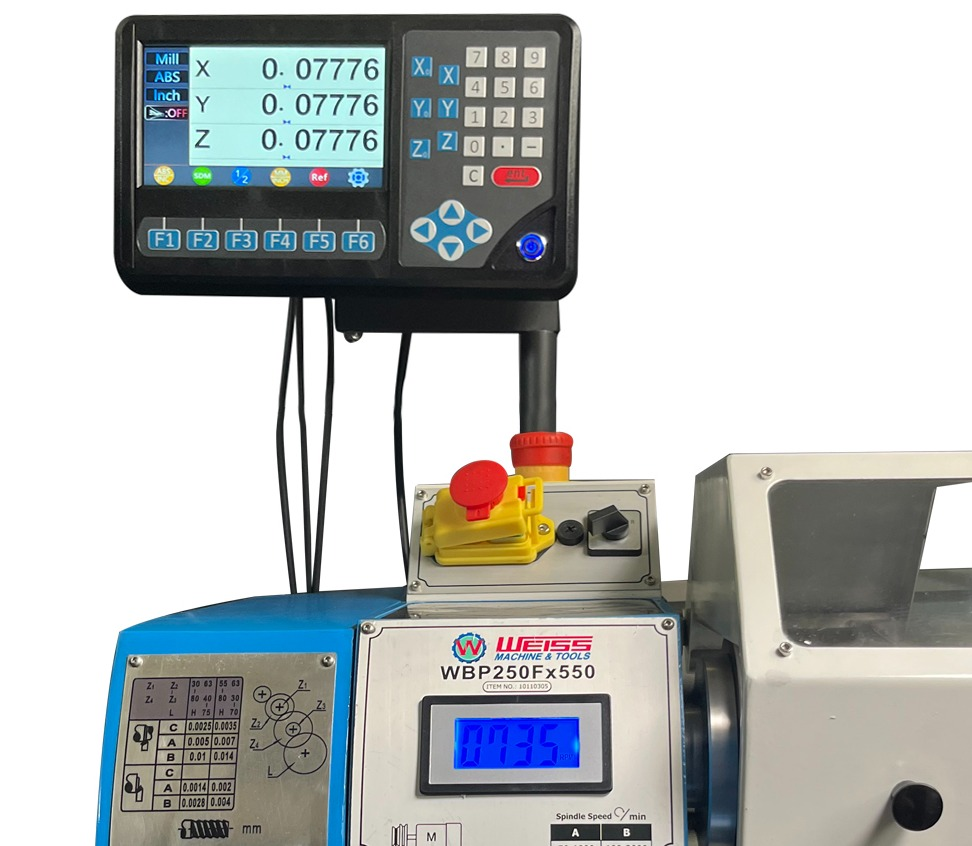

▪️Spindle RPM can be monitored on the digital readout

▪️Spindle movement can be monitored on depth ruler in both inch or metric way

▪️VM18L precision manual fine down feed can be adjusted with the min. feed rate up to 0.002"

▪️A clear chip guard with switch-off function on the spindle keeps debris from flying at the operator.

▪️Single speed belt drive system provides more quiet and easy operation, avoid any failure prone plastic gears and the hassle of changing them when stripped (on old version mill)

▪️GATES Tooth belt provide strong and precision transmission

▪️Mill head can be tiltled 90 degrees

Electronic Driving System

WBL250F Series has 1.5HP POWERFUL brushless motor for lathe and 1HP brushless motor for mill with silent running
High quality electronics used throughout machine for long term reliability
Braking resistors increase the stability of the electrical system
Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs. Especially with low energy consumption brings better economic benefits to users
