WEISS™ Metal Lathe Benchtop Brushless Lathe-WBL250F / WBL250LF

$1376.45

≥1 Piece/Pieces

Payment:

Product Attributes



Product Attributes

Model No.: WBL250F has power cross feed function

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

12.5cm*57cm*61cm

Single gross weight

148kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	20	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

MODEL NO.: WBL250F; WBL250LF
INTRODUCTION:

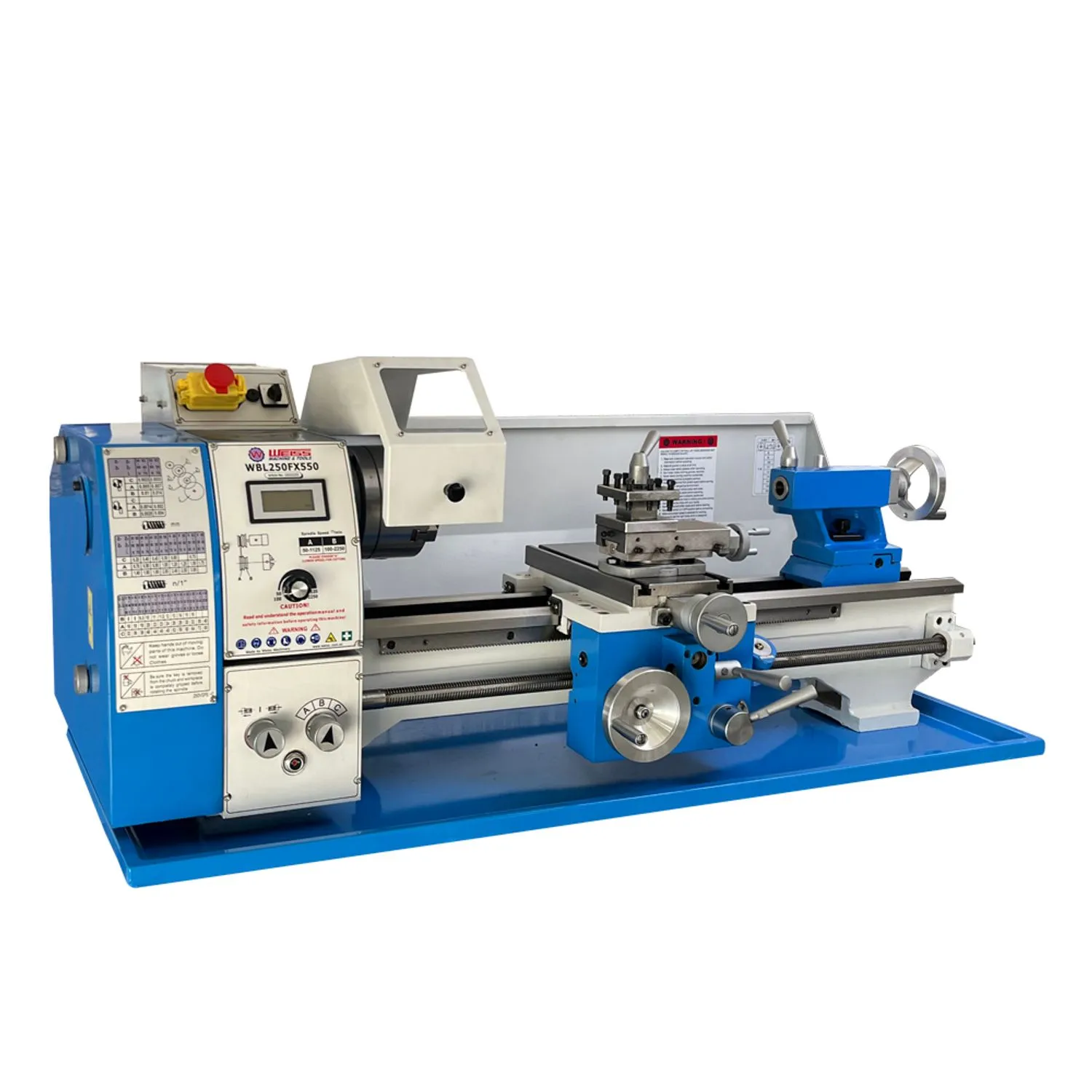

WEISS WBL250F and WBL250LF bench lathe is the perfect size for garage or workshop to take on light duty jobs requiring a 10" swing, 1"(26mm) spindle bore and 22"~ 30" between centers.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

· 5" A type 3-jaw chuck with two sets of jaws
· Steady rest
· Follow rest
· Faceplate
· 4-way tool post
· Chuck guard
· Splash guard & oil tray
· Chasing thread dail
· Replacement fuses
· MT#2 & MT#4 dead centers
· MT#2 living center
· Tool box with service tools

DESCRIPTION

1. WEISS WBL250F bench lathe is the perfect size for garage or workshop to take on light duty jobs requiring a 10" swing, 1"(26mm) spindle bore and 22" between centers.
WEISS WBL250LF bench lathe is the perfect size for garage or workshop to take on light duty jobs requiring a 10" swing, 1"(26mm) spindle bore and 30" between centers.

2. This lathe comes equipped with a full featured carriage and apron assemblies that provide super accurate custs and finishes.

3. POWER CROSS FEED as well as feed on the carriage. Both in, out, left&right

4. Powerful 1.5HP Brushless Motor provide variable speeds from 50 - 2000 rpm.

5. Lead screws are true Inch pitch screws on cross slide, compound slide and tailstock for easy inch measurement readings.

6. WEISS Nanjing factory provides reliable quality, in time service and fast technical support

SPECIFICATION

Model No.	WBL250F	WBL250LF
Item No.	10103255	10103256
Distance between centers	550mm	750mm
Swing over bed	250mm	250mm
Swing over cross slide	140mm	140mm
Bed width	132mm	132mm
Spindle bore	26 mm	26 mm
Spindle taper	MT#4	MT#4
Spindle speeds	50-2000 RPM (Variable)	50-2000 RPM (Variable)
Range of cross feeds	0.03-0.075mm	0.03-0.075mm
Range of longitudinal feeds	0.07-0.40mm	0.07-0.40mm
Inch thread range	(37) 8–80 TPI	(37) 8–80 TPI
Metric thread range	(21) 0.35–3 mm	(21) 0.35–3 mm
Cross slide travel	105mm	105mm
Tailstock taper	MT#2	MT#2
Tailstock quill travel	75mm	75mm
Motor type	Brushless 1.5HP	Brushless 1.5HP
Power supply	110V/1Ph/60Hz	110V/1Ph/60Hz
Rated current	10A	10A
Packing size	1250x570x610mm	1500x570x610mm
Approx. shipping weight	148kg	168kg

DETALIS

WBL250F /WBL250LF Series Machine come with: Steady Rest, Follow Rest, Faceplate, MT2 Living Center, Metal Toolbox&Tools
