WEISS™ Metal Lathe Benchtop Brushless Lathe With 2-Axis DRO WBL250F-D / WBL250LF-D

 

WEISS™ Metal Lathe Benchtop Brushless Lathe With 2-Axis DRO WBL250F-D / WBL250LF-D

$1708.93
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: WEISS™ Metal Lathe Benchtop Brushless Lathe With 2-Axis DRO WBL250F-D / WBL250LF-D

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

150cm*57cm*61cm

Single gross weight

168kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	20	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

MODEL NO.: WBL250F-D; WBL250LF-D
INTRODUCTION:

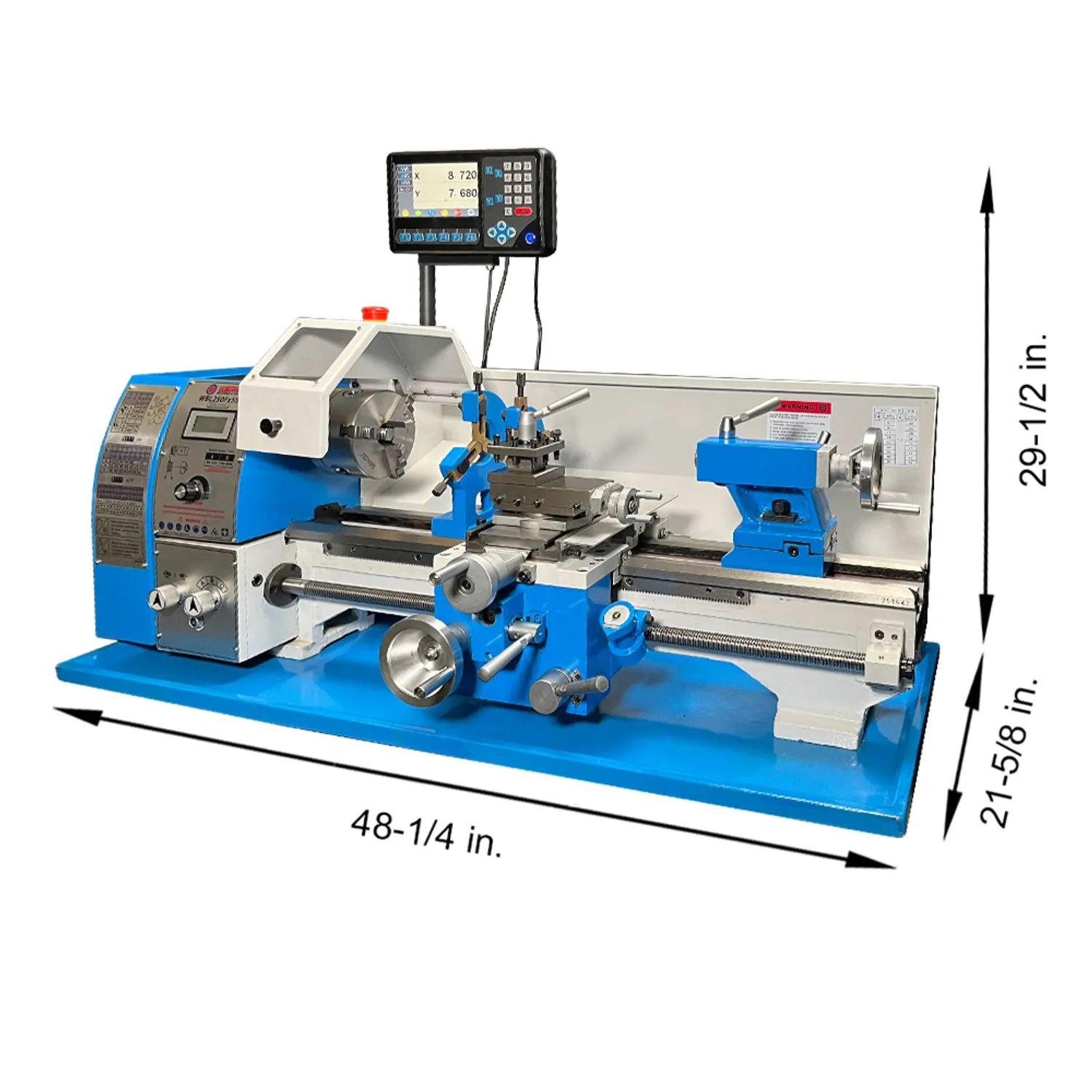

WEISS WBL250LF-D bench lathe is the perfect size for garage or workshop to take on light duty jobs requiring a 10" swing, 1"(26mm) spindle bore and 22~30" between centers. It is equipped with 2-Axis magnetic DRO (D18).

Standard Accessories

These accessories comes with each machine for no extra charge, including:

· 5" A type 3-jaw chuck with two sets of jaws
· Steady rest
· Follow rest
· Faceplate
· 4-way tool post
· Chuck guard
· Splash guard & oil tray
· Chasing thread dail
· Replacement fuses
· MT#2 & MT#4 dead centers
· MT#2 living center
· Tool box with service tools
· 2-Axis 7" LCD screen DRO

SPECIFICATION

Content	Imperial	Metric
Model No.	WBL250LF-D
Distance between centers	30"	750mm
Swing over bed	10"	250mm
Swing over cross slide	5-1/2"	140mm
Bed width	5-1/4"	132mm
Spindle bore	1"	26 mm
Spindle taper	MT#4	MT#4
Spindle speeds	50-2000 RPM (Variable)	50-2000 RPM (Variable)
Range of cross feeds	0.0014-0.004"/rev.	0.03-0.075mm
Range of longitudinal feeds	0.0025-0.014"/rev.	0.07-0.40mm
Inch thread range	(37) 8–80 TPI	(37) 8–80 TPI
Metric thread range	(21) 0.35–3 mm	(21) 0.35–3 mm
Cross slide travel	4-1/8"	105mm
Compound rest travel	2-3/4"	75mm
Tailstock taper	MT#2	MT#2
Tailstock quill travel	2-3/4"	75mm
Motor type	Brushless 1.5HP	Brushless 1.5HP
Power supply	110V/1Ph/60Hz	110V/1Ph/60Hz
Rated current	10A	10A
Packing size	59" W × 22-5/8" D × 24" H	1500x570x610mm
Approx. shipping weight	370 lbs.	168kg

DESCRIPTION

1. WEISS WBL250LF-D bench lathe is the perfect size for garage or workshop to take on light duty jobs requiring a 10" swing, 1"(26mm) spindle bore and 30" between centers.

2. This lathe comes equipped with a full featured carriage and apron assemblies that provide super accurate custs and finishes.

3. POWER CROSS FEED as well as feed on the carriage. Both in, out, left&right

4. Powerful 1.5HP Brushless Motor provide variable speeds from 50 - 2000 rpm.

5. Lead screws are true Inch pitch screws on cross slide, compound slide and tailstock for easy inch measurement readings.

6. 2-axis DRO system shows carriage travel and cross slide travel

7. WEISS Nanjing factory provides reliable quality, in time service and fast technical support

DETALIS

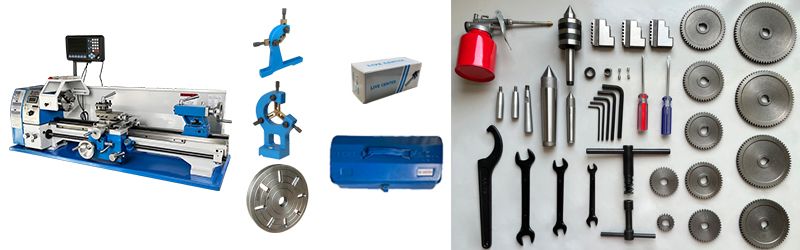

WBL250LF-D Machine come with: Steady Rest, Follow Rest, Faceplate, MT2 Living Center, Metal Toolbox&Tools, 2-Axis DRO


	7" True Color LCD Screen 2-Axis DRO System with Magnetic Scale Contactless magnetic scale measuring system get slim dimension which is simple to intall. It matches IP 67 protection degree and get excellent performance to resist the oil, dust, dirt., etc. The best choice to work under adverse condition.

WEISS™ Metal Lathe Benchtop Brushless Lathe With 2-Axis DRO WBL250F-D / WBL250LF-D

370 lbs.

7" True Color LCD Screen 2-Axis DRO System with Magnetic Scale
