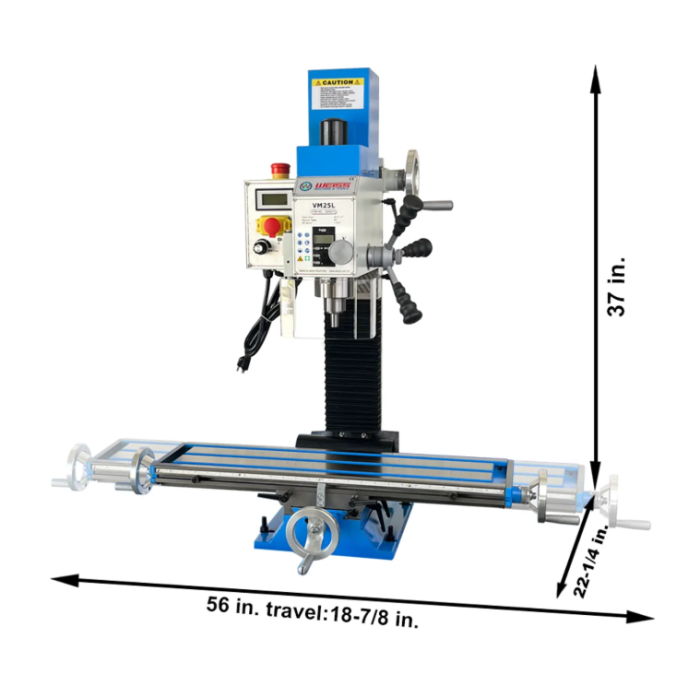

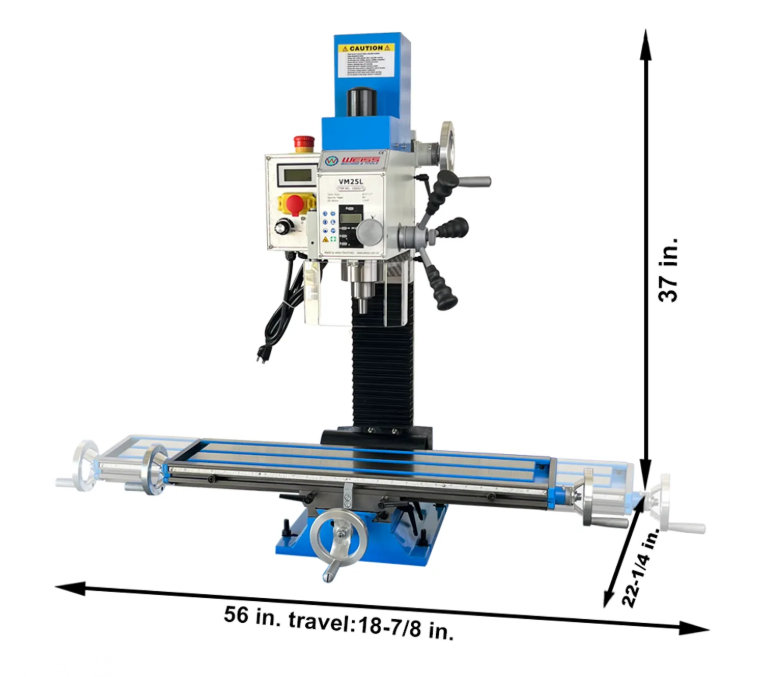

WEISS™ VM25L 7" x 27" Benchtop Milling Machine

$1015.48
≥1 Piece/Pieces

Contact Now

Payment:

Product Attributes



Product Attributes

Model No.: WEISS™ VM25L 7" x 27"

Packaging & Delivery

Selling Units

Piece/Pieces

Single package size

0cm*0cm*0cm

Single gross weight

302kg

Lead Time

Quantity（Piece/Pieces）	1	>1
Est. Time（days)	10	To be negotiated

If you finish the payment today, your order will ship out within the delivery date.

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



Introduction

MODEL NO.: VM25L
INTRODUCTION:

WEISS 3rd generation mill has excellent value and good features found on larger mill drills. It is easily operated by novice, also great for a dedicated.

Standard Accessories

These accessories comes with each machine for no extra charge, including:

-Keyless drill chuck capacity 5/8" with JT33 taper
-Drill chuck arbor R8/JT33
-7/16"-20 Drawbar
-Tapping pedal
-Toolbox & tools
-Technical documentation
-3-Axis DRO 7" with 7" true color LCD screen
-X-Axis power feed

SPECIFICATION

Model No.	VM25L	VM25L-D	VM25L-DP
Item No.	10203275	10203275-D	10203275-DP
Max. Drilling Capacity	1"
Max. End Milling Capacity	5/8"
Max. Face Milling Capacity	2-1/2"
Spindle Stroke	2"
Rang of Spindle Speeds	Variable 100-2250 rpm
Taper of Spindle	R8
Drawbar	7/16"-20
Max. Distance Spindle to Table	13"
Max. Distance Spindle to Column	7-1/2"
T-Slot Size	3-7/16"
T-Slot Centers	2-1/2"
Table Size	27-9/16" x 7 - 1/16"
Cross Travel (Y-Axis)	5-1/2"
Longitudinal Travel (X-Axis)	18-7/8"
Vertical Travel (Z-Axis)	11-1/8" (w/o spindle cover) 10-7/8" (w/ spindle cover)
Table Leadscrew Pitch	10 TPI (.100" Per Turn)
Headstock Tilt Lef&Right	±90°
Motor Power (Brushless type)	1.5 HP
Power requirement	Single Phase 110V 60Hz
Packing Size	29-1/2" x 27-3/4"x37-3/8"
Net Weight	255 lbs	263 lbs	270 lbs
Gross Weight	302 lbs	310 lbs	317 lbs
Standard Accessories	Keyless drill chuck capacity 5/8" with JT33 taper Drill chuck arbor R8/JT33 7/16"-20 Drawbar Tapping pedal Toolbox & tools Technical documentation	Keyless drill chuck capacity 5/8" with JT33 taper Drill chuck arbor R8/JT33 7/16"-20 Drawbar Tapping pedal Toolbox & tools Technical documentation 3-Axis DRO 7" with 7" true color LCD screen	Keyless drill chuck capacity 5/8" with JT33 taper Drill chuck arbor R8/JT33 7/16"-20 Drawbar Tapping pedal Toolbox & tools Technical documentation 3-Axis DRO 7" with 7" true color LCD screen X-Axis power feed

DESCRIPTION

1. WEISS 3rd generation mill has excellent value and good features found on larger mill drills. It is easily operated by novice, also great for a dedicated.

2. Big powerful 1.5 HP (1100W) Brushless DC Variable Speed Motor.

3. Single speed tooth belt driving system with 100-2250 RPM speed, provides easy and reliable operation, super silence runnning.

4. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis.

5. All leadscrews are true inch pitch screws, larger dials with .002" graduate for easier reading.

6. The X-axis table power feed provides precision powered longitudinal table movement with adjustable limit stops for preset range of motion. [optional]

7. 7" true color LCD screen 3-Axis DRO system with magnetic scale. [optional]
